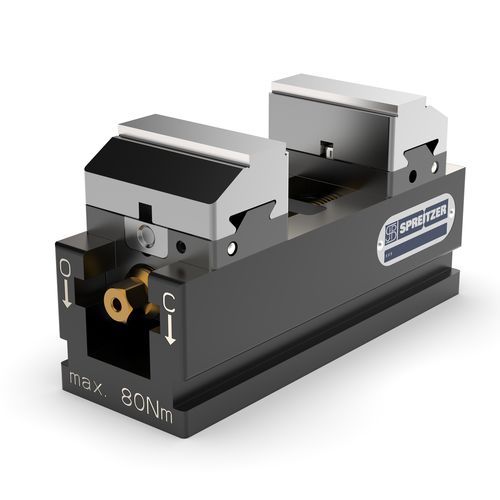

Center-clamping vise MZQ
for machine tools5-axis machine toolvertical

center-clamping vise
center-clamping vise
center-clamping vise
center-clamping vise
Add to favorites
Compare this product


Characteristics

Applications
for machine tools, 5-axis machine tool
Configuration
horizontal, vertical, interchangeable jaws
Other characteristics
self-centering, steel, center-clamping
Max. clamping force

30 kN, 40 kN, 50 kN

Stroke

Min.: 20 mm
(1 in)

Max.: 75 mm
(3 in)

Description

The centre-clamping vise series MZQ with quick change jaws enables replacement of the jaws within seconds. They are designed specifically for use within pallet automation and for several times a day retooling the centre-clamping vises. The reversible stepped jaws allow maximum accessibility even with short cutting tools. Due to the stepped form of the reversible top jaws, the complete clamping range can be covered. Advantages at a glance Changing jaws within seconds, without using tools Over 80% less setup costs Large clamping range due to reversible top jaws Material: modified steel, surface hardened Functional surfaces precision grinded Hardened spindle Ground-in base jaws Centering accuracy ± 0,015 mm Repetition accuracy 0,01 mm Pairing accuracy 0,02 mm Explanation type: model length (mm)-width (mm) Type: MZQ 120-60, MZQ 150-60, MZQ 170-60, MZQ 190-100, MZQ 220-60, MZQ 220-80, MZQ 280-100. Please specify the type when raising a request.
