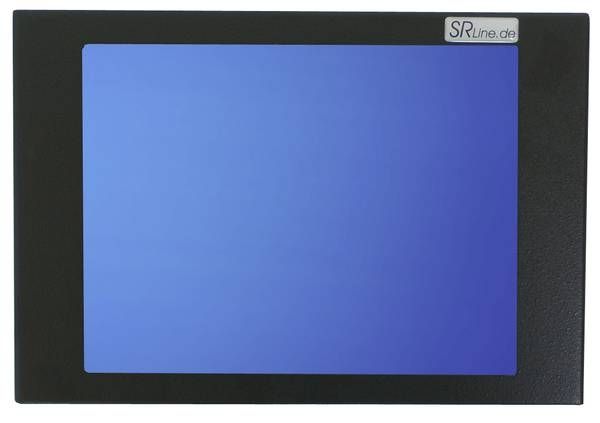

Rugged LCD/TFT display
26.4 cm (10.4"), 800 x 600 px | M-FLAT 32/W
SR SYSTEM-ELEKTRONIK GmbH
Successor of M-FLAT 10/3!
This M-FLAT 10" has an industry panel at an optimal price / performance ratio.
With LED backlight! VESA 75 mounting
Size:
26,4 cm (10,4")
Pixel distance:
0,33 x 0,33 mm
Resolution:
800 x 600
Picture Area:
211 x 158 mm
Brightness:
400 cd/m² min.
Contrast:
700:1
Viewing angle:
80°/ 80° (R/L) / 80°/ 60° (U/D)
Back lighting:
LED
Colors:
16,2 Mio. / 262 k
Response time:
30 ms typ.
Line frequency:
31 ~ 54kHz
Frame frequency:
60 Hz
Alignment:
sep. TTL pos./neg.
Video standards:
VGA, SVGA
Signal input:
15pin D-Sub analog, DVI-D digital
Power supply:
12V DC ± 10/ 5%
Power consumption:
18 W
Weight aprox.:
3,2 kg
Standards, conformity:
CE (EN 61000-6-2 und EN 61000-6-3); RoHS
Protection:
IP65 / NEMA 4 front (non-reflective glass)
Operation temperature:
0° ~ +50° C
Storage temperature:
-20° ~ +60° C
Mechanic:
housing aluminium
