Gasketed-plate heat exchanger
max. 300 psi, 0 ... 338 °F Standard Xchange

Characteristics

  • Type:

    gasketed-plate

Description

Description:

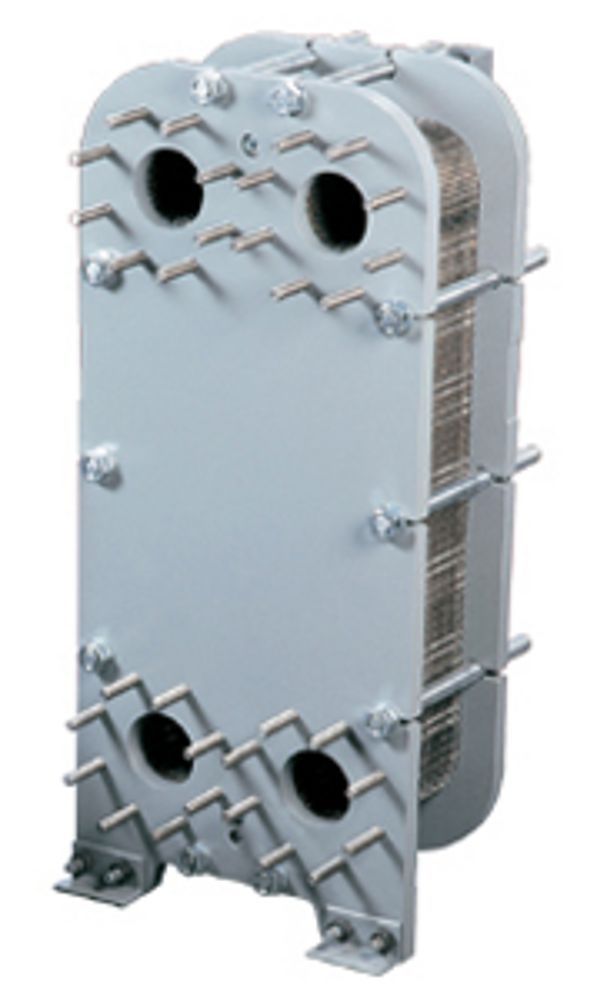

Plate and Frame heat exchangers use a combination of chevron-style heat transfer plates sequenced between a frame plate and pressure plate. The heat transfer plates have holes at the four corners forming a header that distribute the respective flows to the opposite sides of each plate when the plates align. The fluids are confined to the heat transfer surface of the plate or the port as appropriate with elastomer gaskets. Max Flow - up to 23,500 GPM with heat transfer areas up to 20,000 Sq. Ft. 1" to 2.5" NPT nozzle connections. 3" to 18" ANSI Studded connections.
