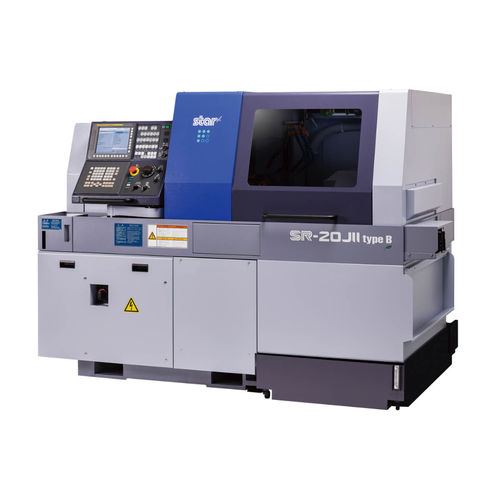

CNC Swiss lathe SR-20JII3-axismulti-spindle4-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Other characteristics
- multi-spindle, 4-spindle
- Diameter
20 mm
(0.79 in)- Rapids on X
35,000 mm/min
(23 in/s)- Rapids on Z
35,000 mm/min
(23 in/s)- Nominal power
2 kW
(2.7 hp)- Overall lenght
2,250 mm
(89 in)- Overall width
1,200 mm
(47 in)- Overall height
1,700 mm
(67 in)- Weight
2,750 kg
(6,063 lb)
Description
Ever-Evolving SR-20JII with versatile features to respond to varied needs.
A unique slanted dovetail slideway structure for insreased rigidity of the tool post.
Type A is equipped with a 4-spindle type and Type B is equipped with Y-axis control / 8-spindle type backworking tool post.
The guide bush and non-guide bush are interchangeable. The non-guide bush type incorporates a spindle sleeve slide guideway structure for higher spindle rigidity.
Catalogs
No catalogs are available for this product.
See all of Star Micronics Machine Tools‘s catalogsOther Star Micronics Machine Tools products
CNC Swiss Type Automatic Lathes
