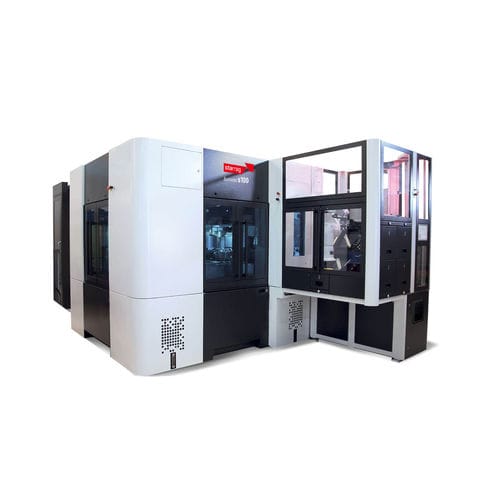

A compact industrial concept for maximum performance taking up minimum floor space
With its dual spindle concept enabling concurrent tool change operations, its high dynamic acceleration, its powered spindles capable of a rotation speed of up to 60.000 min-1, its high number of tools, the s100 is a modern production tool pushing back the boundaries of high-precision machining.
The s100 range makes it possible to produce highly complex parts. Ideal for 3 axis machining of watch movement parts, it has also proven itself unbeatable in a whole host of fields, such as mobile telephony, electronics or nanotechnologies.
Features:
Unique dual spindle concept
Highly dynamic acceleration, up to 3g
4 machining stations
Up to 36 tools integrated into the machine
Chip to Chip in 0.5 sec
60.000min-1 on the tool
Linear motors
Pallet change transfer system
High autonomy
Numerical control
High-performance Bosch Rexroth MTX CNC
Embedded industrial PC
15’’ colour screen
Remote multi-function console
Computing power built into the axis variators, to provide a very high performance regulation loop
Human-Machine Interface adaptable to a PC base
SPINDLE POWER 60.000min-1
HSK-E25 attachment
Embedded elongation measurement sensor
Tool indexing by means of the spindle encoder
Air – oil lubrication
Temperature stabilization ensured by forced water circulation
Hybrid ball bearings (ceramic)
Sealing ensured by positive air pressure
High rigidity
Tool changer
Tool change operation carried out concurrently
Capacity 2x18 tools per station (36 tools per station)
144 tools on the machine
Pick & place concept
Rapid tool holder disc changeover
