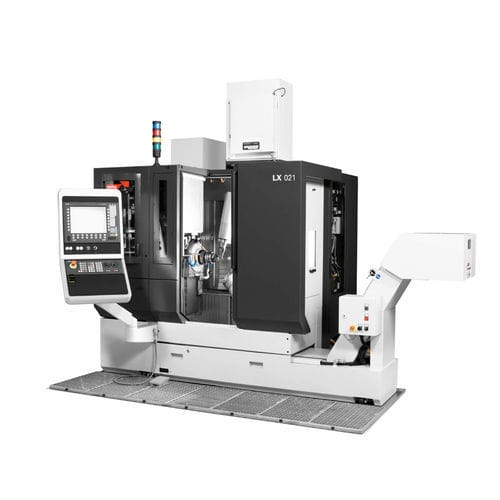

3-axis CNC machining center LX series
verticalHSK A-63HSK-80-A

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
HSK A-63, HSK-80-A
Number of tool stations
60 tools, 30 tools, 80 tools
Other characteristics
compact, high-productivity, high-precision, high-rigidity, with pallet changer
X travel

400 mm, 650 mm
(16 in, 26 in)

Y travel

200 mm, 650 mm
(8 in, 26 in)

Z travel

410 mm, 680 mm
(16 in, 27 in)

Rotational speed

18,000 rpm, 30,000 rpm, 40,000 rpm
(113,097 rad.min-1, 188,496 rad.min-1, 251,327 rad.min-1)

Power

21 kW, 28 kW
(28.55 hp, 38.07 hp)

Work feed X-axis

50,000 mm/min, 62,000 mm/min
(33 in/s, 41 in/s)

Work feed Y-axis

50,000 mm/min, 62,000 mm/min
(33 in/s, 41 in/s)

Work feed Z-axis

50,000 mm/min, 62,000 mm/min
(33 in/s, 41 in/s)

Tool weight (max)

1.2 kg, 10 kg
(2.6 lb, 22 lb)

Positioning accuracy

0.002 mm, 0.004 mm
(0 in, 0 in)

Tool-changing time

1.5 s, 4.5 s

Weight

6,400 kg, 13,000 kg
(14,109.58 lb, 28,660.09 lb)

Overall length

5,000 mm, 7,700 mm
(196.9 in, 303.1 in)

Overall width

3,000 mm, 3,900 mm
(118.1 in, 153.5 in)

Overall height

2,800 mm, 3,500 mm
(110.2 in, 137.8 in)

Description

The LX series was specifically designed for the high-precision, efficient five-axis machining of turbine blades. This ultra-modern machining platform is the result of decades of experience in the development of machine tools, CAM systems and special tools combined with our in-house expertise in the prototype and series production of turbine blades. Maintenance friendly Any component requiring periodic service are easy accessible Replacement items e.g. filters, wipers etc are easy to access Machine components require service are simply to access and repair Safe working areas for maintenance personal e.g. platforms and attach point are provided Condition based machine monitoring to predict future component failure Opposed Spindle Full subspindle Horizontal / vertical positioning / machining Max. rpm: 4,000 1/min identical to mainspindle Highly dynamic rotary axes The rotary axes are directly driven by state-of-the-art torque motors Guarantees the most precise positioning High torque even at low speed Highest possible rigidity for maximum dynamics Power transmission free of backlash and extended service intervals No mechanical component wear Driven tip station with controllable torque Monitoring Process analyses and stability evaluations can be made easily with integrated sensors and evaluation routines. Collision damage is significantly reduced thanks to rapid crash detection and machine stop. This is an excellent addition to Starrag’s simulation solutions to avoid expensive machine downtime. The balancing quality of all tools and the state of the spindle bearings are automatically monitored.
