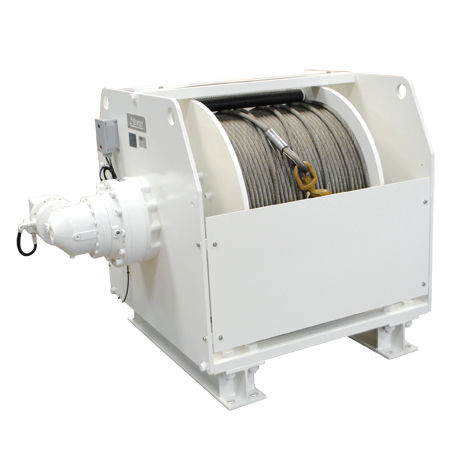

Electric winch ARGOS OFS serieshydraulicpneumaticwire rope
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic, pneumatic
- Type
- wire rope
- Application
- lifting, haulage
- Other characteristics
- planetary, for offshore applications
- Capacity
Max.: 21,006.2 kg
(46,310.7 lb)Min.: 2,100.6 kg
(4,631 lb)- Speed
Max.: 6,100 mm/min
(4 in/s)Min.: 4,000 mm/min
(2.6 in/s)- Cable diameter
Max.: 38 mm
(1.5 in)Min.: 12 mm
(0.47 in)- Weight
Max.: 2,026 kg
(4,466.565 lb)Min.: 307 kg
(676.819 lb)
Description
The lifting winch Argos OFS is designed according to different offshore standard DNV 2.22 Lifting Appliances, BV NR 526, NR 595 BV, RINA, ABS.
The winding ratio between the drum diameter and the cable diameter is 18.
Its construction fully bolted allows the hoist to overcome notebooks welding and this allows rapid manufacturing.
A coating adapted to the saline environment and marine C5M type can be applied for protection of the hoist according to that specific environment.
• Offshore applications, pulling and lifting.
• DNV, BV, ABS, RINA certification…
• Hydraulic motor (air or electrical in option).
• Planetary gearbox.
• Offshore frame to be handle by crane or forklift.
