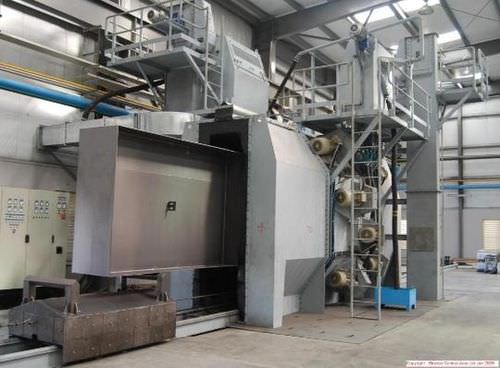

overhead conveyor shot blasting machine / for metal / 12-wheel
81 kg/h | 12W - 0.8 x 2.0 Steelex International

{{requestButtons}}

Characteristics

  • Type:

    overhead conveyor

  • Applications:

    for metal

  • Other characteristics:

    12-wheel

Description

The SPT 12W - 0.8 x 2.0 is a high speed shot blasting machine for structural steel and pre-engineered building (PEB) built up sections and
fabrications. The capacity is between 15 to 20 tonnes of PEB beams per hour and more for structural steel fabrications.

This machine has twin blast cabinets with four blast wheels mounted on one and eight blast wheels mounted on the second. The first set of wheels
pre-blast the beam and the second set fully blast to allows the very high line speeds of 3 to 4 m/min for SA 2.5. It also allows great flexibility to sweep
blast with only 4 wheels, blast with 8 wheels or all 12 wheels dependant on the initial condition of the steel.

Specification
Maximum Height : 2000 mm
Maximum Width : 800 mm
Maximum Length : Dependant on conveyor

Blast Wheels : 12
Blast Wheel Power : 22 kW
Power Required : 300 kW

Passline Height : 1000mm
Conveyor Speed m/min : 0.5 to 10
Dust Collector Size : 20000 CFM
Floor Space Required : 8m x 10m (Machine Only)
Maximum Height : 6.8m
Initial Fill of Abrasive : 12000 kgs
