Metal cutting machine / CO2 laser / sheet metal / CNC
IDMLASER COOL200 SteelTailor

Characteristics

  • Material:

    metal

  • Technology:

    CO2 laser

  • Product handled:

    sheet metal

  • Control type:

    CNC

  • Associated function:

    marking

  • Other characteristics:

    economical, with servo-motor

  • X travel:

    1250 mm

  • Y travel:

    2500 mm

  • Cutting speed:

    20000 mm/min (13.12 in/s)

  • Laser power:

    200 W (0.27 hp)

Description

2mm steel plate & 20mm acrylic, one machine!

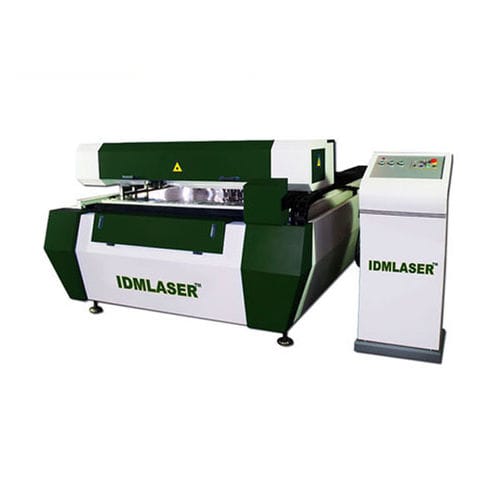

IDMLASERTM COOL200 is a CO2 laser cutting machine. COOL200 is able to meet customers different requirements for sheet metal and non-metal cutting, e.g.
carbon steel, stainless steel, acrylic plates, die-making board, etc. With unique technical advantages and high performance against cost, COOL200 offers an economical laser cutting solution to customers. As the leading product in its sector, COOL200 features low operating cost, long service life and easy maintenance with 200W CO2 laser generator.

Technical Parameters
Input Voltage & Frequency Single Phase 220V±10%, 50Hz
Input Power 5000W
Effective Cutting Range 1250mm (X axis)*2500mm (Y axis)
Z Axis Stroke 60mm
Cutting Speed 0~20000 mm/min
Repeatability ±0.05mm
Overall Dimensions 2130mm (width)*3600mm (length)*1400mm (height)
Cutting Mode Laser cutting
Laser Type CO2 Laser Tube
Cutting Head Auto-focusing cutting head
Height Control Specialized height control system for metal cutting
Driving System Precision screw and servo drive motor
Control System Professional software for laser operation
Cooling Method of Laser Tube Automatic water cooling (temperature auto monitoring)
Cutting Materials Carbon steel, stainless steel, acrylic, density board and  die-making board, etc.
Cutting Thickness Metal:carbon steel 0~2.0mm; stainless steel 0~2.0mm; Non-metal: acrylic 0~20mm; die-making board 0~18mm
