Metal cutting machine / plasma / flame / oxy-fuel
G3 SteelTailor

Characteristics

  • Material:

    metal

  • Technology:

    plasma, flame, oxy-fuel

  • Product handled:

    pipe

  • Control type:

    CNC

  • Other characteristics:

    high-speed, high-performance, gantry type

  • Cutting speed:

    Min.: 100 mm/min (0.07 in/s)

    Max.: 750 mm/min (0.49 in/s)

Description

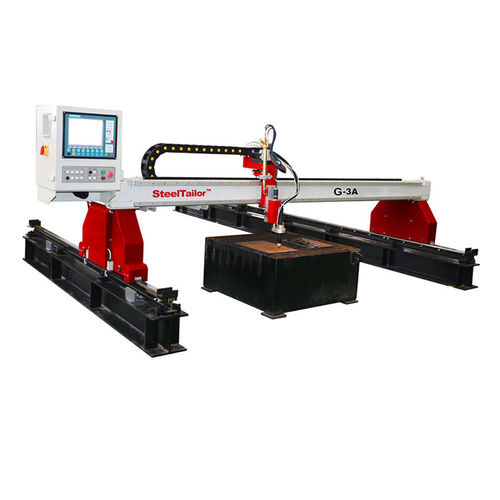

SteelTailor G3 - World Best Seller Gantry CNC Cutting Machine
First-class Gantry Cutting Machine, Best Price!
Water table is optional ;
H-beam and towline groove are optional.
1. Keep High Positioning Precision for 10 Years!
A. The beam and slide are symmetrical and structured with square tubes, which ensures high stability in high-speed operation.
B. Beams are stress relieved after high temperature annealing, guarantee high cutting precision for a long time.
C. 22KG standard gantry rail, rack & pinion with grade 7 precision (Euro Standard) and specialized reducer make its positioning precision conform to ISO 8206-1991 and its diagonal error within 1mm under the range of 3m*10m.
2. Make Gantry Cutting Simple, More Simple~
A. Intelligent NC System (F2300T controller - self-developed and patented technology);
(High stability, fast operation, built-in integrated THC function, easy operation and reduce troubles)
B. Simple electrical connection;
(Just connect with AC220V /110V power line, oxygen rubber pipe and fuel gas tube)
C. Oxy-fuel and plasma switch in 30 seconds;
(Oxy-fuel or plasma cutting can be switched easily by exchanging the torch holder, which avoids reducing the effective cutting area)
D. Optional gas regulator makes operator adjust air pressure easily
3. Unique Design of Technical Details, Perfect Cutting Effect~
A. ±45°bevel cutting, adjust angle at will
B. Anti-collision device to avoid damage to plasma torch
C. Can update to 2 oxy-fuel torches for improving productivity. (Distance is adjustable.)
D. Multiple steel plates can be put on cutting table for improving productivity.
E. Heavy duty tasks and keep working for 24 hours/day.
