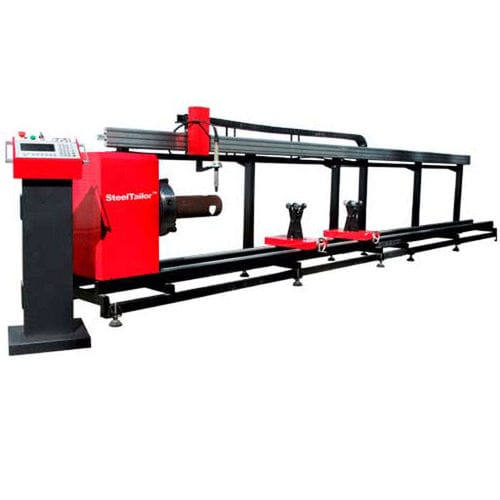

Metal cutting machine / for tubes / CNC / portable
TubeTailorII SteelTailor

Characteristics

  • Material:

    metal

  • Product handled:

    for tubes

  • Control type:

    CNC

  • Other characteristics:

    portable, economical

  • X travel:

    6000 mm

  • Cutting speed:

    2000 mm/min (1.31 in/s)

  • Tube diameter:

    Min.: 80 mm

    Max.: 400 mm

Description

SteelTailor TubeTailorII CNC tube cutting machine is an simple and efficient CNC tube cutter.

Major Functions:
1.truncation cutting,
2.slot cutting, square hole cutting,
3.unfold tube cutting and letter cutting,
4.bevel tee junction cutting,
5.Y junction tube cutting,
6.tee junction main tube cutting,
7. te junction branch tube cutting
8.branch cutting for multi-tube joint.

These functions make TubeTailorII CNC tube cutting machine more powerful than TubeTailorI CNC tube cutter.
TubeTailor II CNC Cutting Machine
1.Rotate the handle to adjust and make the pulley wheel close to the tube wall for achieving stable cutting process.
2.Vibration reduction technique ensures stability and brings better cutting quality
3.Diameter of tubes :Ф80~Ф400mm
4.wall thickness ≤ 8mm
5.Control cabinet with roller wheel, easy for movement and operation
6.Butt joint installation for two sections of machine tool

TubeTailor II is an economical CNC tube cutting machine with SteelTailor portable design. It is suitable for cutting tubes with diameter from 80 to 400mm and cutting various graphs in metal tubes, which have thickness of less than 8mm. Besides, it can work for different butt joint after welding tubes.
Program code can be checked and saved in controller or USB
Vibration reduction technique ensures stability and brings better cutting quality.
Technical Parameters
ItemsDescription
Power AC220 V 50/60Hz 1.5KW
Tube DiametersФ80—Ф400mm
Wall Thickness≤8mm
X-axis Effective Cutting Length6000mm
Z-axis Effective Lifting Distance110mm
THCAutomatic arc voltage THC
MAX Cutting Speed2000mm/min
MAX Running Speed3000mm/min
X Positioning Precision±0.2mm/10mm
X Repeatability±0.2mm/10mm
