Wire mesh conveyor belt 600stainless steelnickel steelchrome steel
Add to favorites
Compare this product
Characteristics
- Type
- wire mesh
- Material
- stainless steel, nickel steel, chrome steel, mild steel, cast steel, galvanized
- Sector
- for the food industry, for the tobacco industry
- Applications
- for drying
- Tolerance
- low-temperature-resistant
- Width
3,100 mm
(122.05 in)
Description

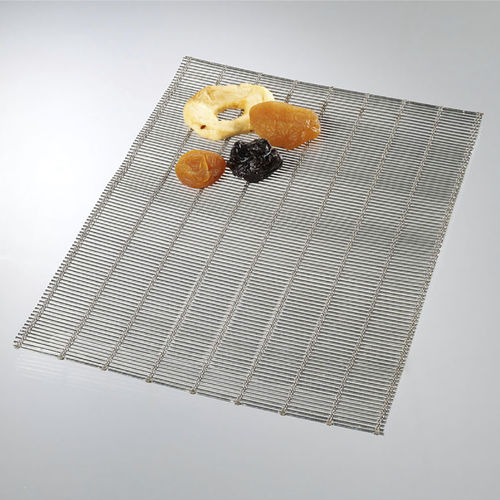

Woven rod bar belts
Woven rod bar belt of Group 600
The woven rod bar belt consists of smooth cross bars, interconnected by wire strands. The edges are cut or can also have side reinforcement.
This type of belt is used for conveying and drying vegetables, tobacco, green fodder, hops etc. This belt is produced in a width of up to 3,100 mm and can be used at temperatures up to 400 °C.
Specification:
Stranded wire: 0.7 – 1.2 mm
Cross bars: 1.5 – 2.5 mm
Slot width: 1.0 – 3.0 mm
Mesh width: 8.0 – 24.0 mm
