for the chemical industry, for the pharmaceutical industry
Nominal diameter
Max.: 500 mm (19.69 in)
Min.: 15 mm (0.59 in)
Operating temperature
Max.: 200 °C (392 °F)
Min.: 0 °C (32 °F)
Length
Max.: 327 mm (12.87 in)
Min.: 46 mm (1.81 in)
Pressure
5.5 bar, 9 bar, 10.5 bar (79.8 psi, 130.5 psi, 152.3 psi)
Description

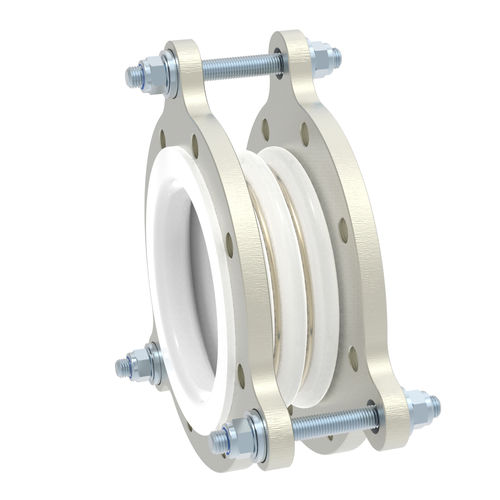

Lateral expansion joint consisting of a PTFE bellow and rotable flanges with tie rods (external restraints) to absorb reaction force from internal pressure.
Applications:
• for conveying aggressive media
• for compensating lateral movement
• for muffling vibration and noise
• for reducing thermal and mechanical tension
• to compensate for installation inaccuracies
• treatment and disposal technology
