Type K thermocouple TFITA Series

type J thermocoupletype T thermocoupleIP68

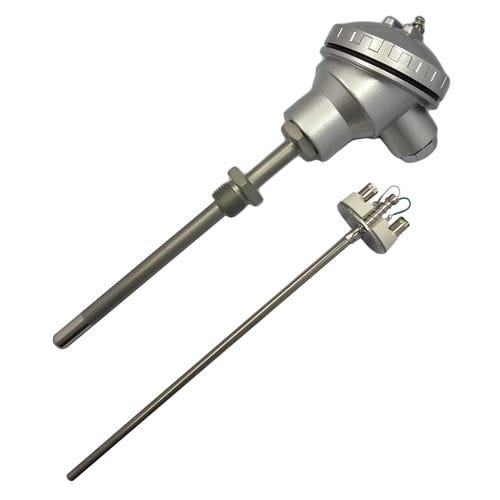

Industrial Thermowell Assembly with removable type K insert for easy thermocouple sensor replacement Extended Description This range of high quality fabricated thermocouple sensors is ideal for temperature measurement in gases or liquids in industrial applications, where a heavy duty assembly is required. The probe features a 6mm diameter spring loaded removable insert, available with type K, T or J Class 1 thermocouple calibration. This gives a fast response and high accuracy, as well as making it easy to replace for maintenance and repair. The standard process connection is ½” BSPP with an 11mm diameter stem, all made from 316 stainless steel. Various immersion lengths are available to suit your process with a standard lagging length of 50mm below an IP68 KNE weatherproof terminal head. Many options are available such as; alternative lengths, diameters, process connections, in-head transmitters and terminations. As well as our standard range, we design and manufacture custom assemblies to suit your specific application needs, including alternative materials, terminal heads, reduced tips and flanged process connections. Features • Type K, T or J thermocouple available • Spring loaded removable insert • Class 1 Accuracy • IP68 weatherproof head • 316 Stainless Steel wetted parts Applications • Machinery, Plant & Tank Measurement • Industrial Process Control • Oil & Gas or Power Generation
