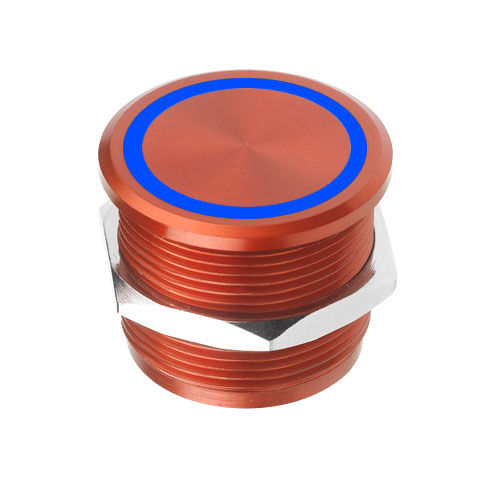

Piezoelectric switch R-07225202
single-poleIP69KIP68

piezoelectric switch
piezoelectric switch
piezoelectric switch
piezoelectric switch
piezoelectric switch
Add to favorites
Compare this product


Characteristics

Type
piezoelectric
Number of poles
single-pole
Protection level
IP69K, IP68, weather-proof
Other characteristics
LED-illuminated, panel-mount, green LED, red LED, white LED, blue LED, mechanical, sealed, anodized (red), aluminum, momentary, flat
Primary current

1 A

Voltage

24 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

One piece solid metal switch based on the piezoelectric principle, which is the ability of some materials (crystals and certain ceramics) to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10 M operating cycles * No power consumption * Completely sealed – IP68/IP69K * Weather proof * Easy installation Specifications Part Number: R-07225202 Type: Piezo Momentary Thread Cut out: 22 mm IP rating: IP68/IP69K Material: Aluminum Type of head: Flat head Ring Illumination: Red/ Green/White/Blue Housing Colour: Red anodized Cable: 20 cm open leads Switching voltage: 24 V Switching current: 1 A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40 °C to +85 °C Vibration resistance: 5-500 Hz/9.4 m Shock resistance: 75 g
