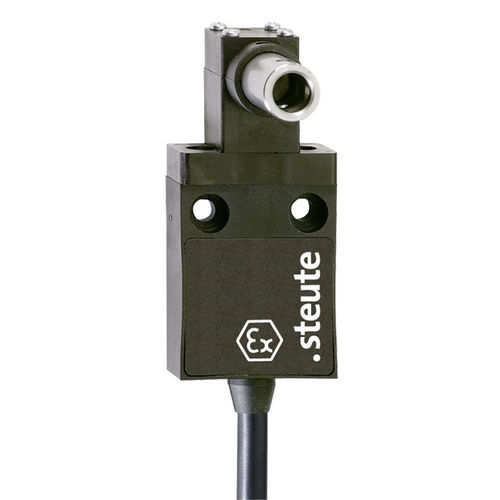

Safety switch Ex 13 SB

rotarymultipoleinsulated

• Ex zone 1 and 21 • Thermoplastic enclosure • Double insulated • With pre-wired cable • Version with cable entry on side available on request • Gold-plated contacts available on request • Shaft bore ø 9.5 mm • Actuating shaft can be turned 360° • Special version only for dust Ex zone 22 available • Attention: Please state required international approvals with your order! • Applied standards - EN 60947-5-1, EN ISO 14119, GS-ET-15, EN 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1 Enclosure - thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Switch type - type 1 Coding level - no coding Degree of protection - IP 65 to IEC/EN 60529 B10d (10 % load) - 2 million TM - max. 20 years Contact material - silver Switching system - slow action, positive break NC contacts Switching elements - 1 NC/1 NO contact, type Zb Connection - pre-wired cable H05VV-F Cable cross-section - 4 x 0.75 mm² (incl. conductor ferrules)
