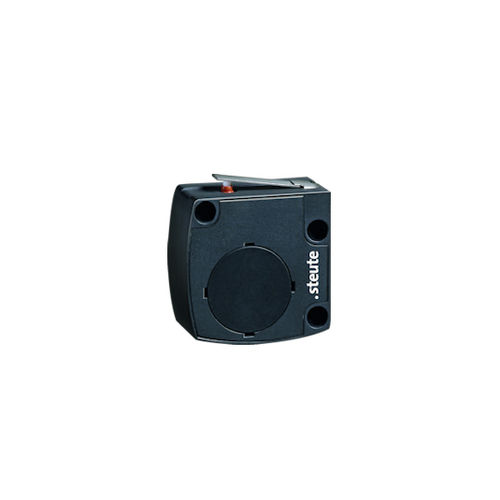

Wireless position switch RF 10 series

self-extinguishingIP67IEC

• Thermoplastic enclosure • sWave® wireless technology (SW868/SW915/SW917/SW922) • No wiring and pipe laying required • Power supply by Lithium battery • Easy programming of receiver • Output signal can be individually configurated at the receiver • Available with "LBT - Listen before Talk" software (necessary in conjunction with potential interference) • Applied standards - EN 60947-5-1, EN 61000-2, EN 61000-3, EN 301 489-1, EN 301 489-3, EN 300 220-2 Enclosure - thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Tightening torque - enclosure mounting screws: 0.5 … 0.6 Nm Degree of protection - IP 67 to IEC/EN 60529 Voltage supply - lithium battery CR 2032 (replaceable) System - Lithium-MnO2 Nominal voltage - 3 V Nominal capacity - 0.23 Ah Battery life - > 800 000 operations Ambient temperature - –20 °C … +65 °C Wireless range - SW868/915/917: max. 450 m outdoors, max. 40 m indoors SW922: max. 150 m outdoors, max. 20 m indoors Mechanical life - > 1 million operations Actuating time - min. 80 ms Wireless approvals - Europe: RED 2014/53/EU USA: FCC - XK5-RFRXSW915 Canada: IC - 5158A-RFRXSW915 Mexico: IFT - RCPSTRF17-1886 Brazil: ANATEL 04172-18-06718 Japan: ARIB STD-T108: 204-610002
