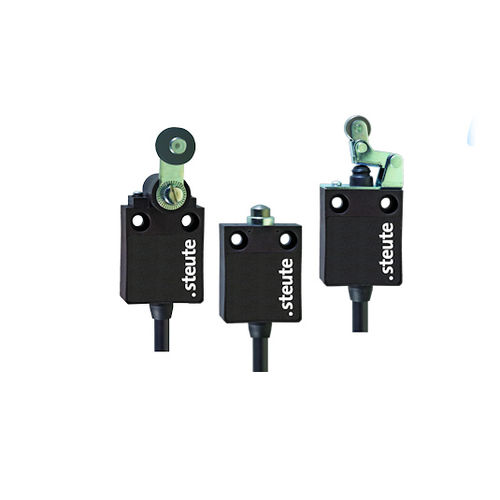

Rotating cam limit switch ES 13

reinforcedinsulatedself-extinguishing

• Thermoplastic enclosure • Double insulated • Slow action • 2 or 3 contacts • Version with 3 contacts has cable entry on side • Suitable for in-line mounting • With pre-wired cable • Gold-plated contacts available on request • Ex version available • Applied standards - EN ISO 13849-1, EN 60947-5-1, EN ISO 14119 Enclosure - thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Switch type - type 1 Coding level - no coding Tightening torque - enclosure mounting screws: max. 5 Nm Degree of protection - IP 67 to IEC/EN 60529 B10d (10 % load) - 2 million TM - max. 20 years Contact material - silver Switching system - slow action, positive break NC contacts ; positive break depends on the actuator used Switching elements - 1 NC/1 NO contact or 2 NC/1 NO, type Zb Connection - cable: 2 contacts: H05VV-F, 3 contacts: 6 x AWG 20 Cable cross-section - 2 contacts: 4 x 0.75 mm²; 3 contacts: 6 x 0.56 mm² Rated impulse withstand voltage Uimp - 4 kV Rated insulation voltage Ui - 250 V Conventional thermal current Ithe - 6 A Rated operating current/voltage Ie/Ue - 6 A/250 VAC; 0.25 A/230 VDC; 4 A/24 VDC Utilisation category - AC-15; DC-13 Short-circuit protection - 6 A gG/gN fuse Ambient temperature - –20 °C … +75 °C Mechanical life - > 1 million operations Operation cycles - max. 1800/h Repeat accuracy of switching points - ± 0.1 mm Contact opening - 2 contacts: max. 2 x 4.5 mm; 3 contacts: max. 2 x 3.5 mm
