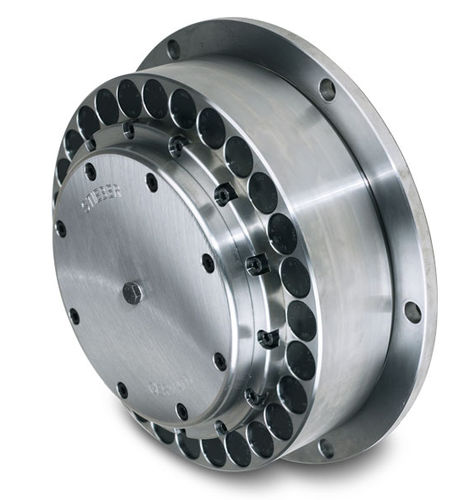

Centrifugal clutch RSRV, RSRT
hydraulicmechanical

centrifugal clutch
centrifugal clutch
Add to favorites
Compare this product


Characteristics

Type
centrifugal
Operation
hydraulic, mechanical
Torque

Min.: 1,400 Nm
(1,032.587 ft.lb)

Max.: 30,000 Nm
(22,126.8645 ft.lb)

Rotational speed

Min.: 275 rpm
(1,727.88 rad.min-1)

Max.: 5,300 rpm
(33,300.88 rad.min-1)

Description

The types RSRV and RSRT are centrifugally lift-off sprag type high speed backstops with integral torque limiter. Please refer to the RSCI design on catalogue pages 74 to 77 for complementary information on Stieber centrifugally lift-off sprag type backstops. The high quality oil through-impregnated friction linings ensure a consistent and reliable slip torque even when not in operation for a long length of time. The slip torque is factory pre-set to the application requirements. These assemblies are primarily intended for installation on multiple drives where two or more backstops share the reverse load, such as on large inclined conveyors. The RSRV is the pure load-sharing version. No maintenance and adjustments are necessary. In addition, the RSRT can be progressively released under load by a mechanical device. Alternatively we can offer a hydraulic release solution for a fully controlled safe release procedure. The slip torque should be set 20% higher than the maximum static return torque including overload conditions. These units are not bearing supported internally. The outer member must be centred on the machine housing. Concentricity and run-out limits must be observed.
