multiple-disc clutch / hydraulic
Max.: 180,000 Nm (132,761.1869 ft.lb)
Min.: 5,500 Nm (4,056.5918 ft.lb)
Max.: 6,000 rpm (37,699.11 rad.min-1)
Min.: 130 rpm (816.81 rad.min-1)

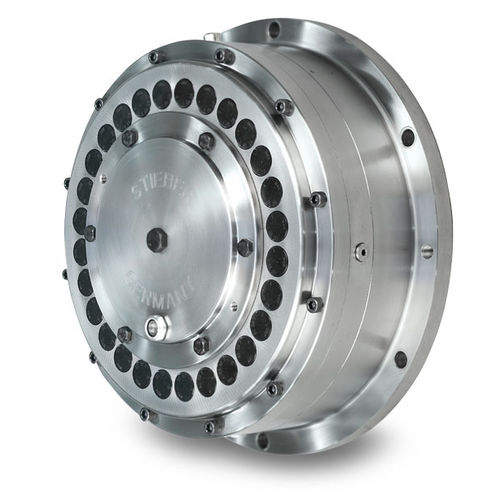

The type RDBK is a centrifugally lift-off sprag RSCI high speed backstop equipped with integral torque limiter. The latter limits the backstop transmissible torque to a value that is factory set-up according to customer request.
This design will be used mostly as backstop in multidrive systems, such as on large inclined conveyors, where two or more backstops share the reverse load.
The torque limiting function is performed through a multi-disc brake working in oil. This solution provides not only for a high torque density of the complete unit, but also insures that the set slip torque remains constant over the working life time regardless of the environmental conditions.
