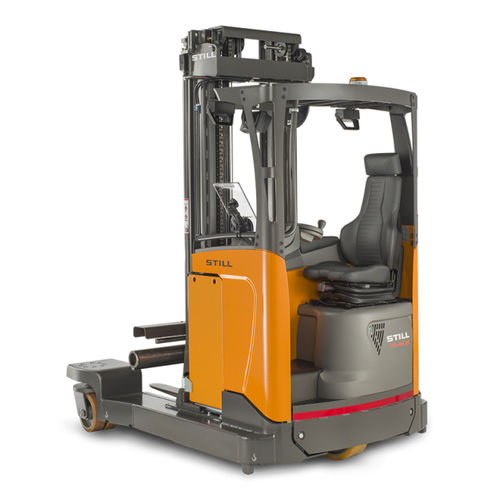

Electric reach truck FM-4W series
side-facing seatedfor warehousehandling

electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling, for warehouse
Other characteristics
3-wheel, multi-directional
Carrying capacity

2,000 kg, 2,500 kg
(4,409.2 lb, 5,511.6 lb)

Lifting height

8,450 mm, 9,650 mm
(332.68 in, 379.92 in)

Overall width

1,498 mm, 1,744 mm
(59 in, 68.7 in)

Overall length

2,473 mm, 2,555 mm
(97.4 in, 100.6 in)

Load center distance

600 mm
(23.6 in)

Weight without load

4,360 kg, 4,960 kg
(9,612.2 lb, 10,934.9 lb)

Height of mast when lowered

3,533 mm, 4,083 mm
(139.1 in, 160.7 in)

Free lift

2,803 mm, 3,353 mm
(110.4 in, 132 in)

Overall height with mast raised

9,200 mm, 10,400 mm
(362.2 in, 409.4 in)

Height to top of overhead guard

2,215 mm
(87.2 in)

Seat height

1,087 mm
(42.8 in)

Length to fork face

1,323 mm, 1,405 mm
(52.1 in, 55.3 in)

Fork carriage width

1,500 mm
(59.1 in)

Ground clearance under mast with load

81 mm
(3.2 in)

Ground clearance at center of wheelbase with load

80 mm
(3.1 in)

Turning circle radius

1,772 mm, 1,932 mm
(69.8 in, 76.1 in)

Travel speed

13 km/h
(8.1 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.3 m/s
(0.984 ft/s)

Lowering speed

Max.: 0.5 m/s
(1.64 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Gradeability

Max.: 15 %

Min.: 5 %

Rated output

7.2 kW
(9.8 hp)

Maximum operating pressure

150 bar
(2,175.6 psi)

Oil flow

25 l/min
(6.6 us gal/min)

Noise level

59.7 dB

Description

Fully functional in all directions • Optimised view in all situations • Holistic ergonomics concept • Extensive standard equipment The FM‑4W is a powerful and energy-efficient four-way reach truck. It transports loads forwards, backwards and sideways. This makes this universal truck particularly well suited for transporting long items (in addition to normal pallets and containers). The smart four-way design also allows for a highly cost-effective use of warehouse space because the reach truck can itself be safely and quickly manoeuvred down even the narrowest of aisles. And it always puts in a good shift too: the FM‑4W can lift loads with a total weight of 2,500 kg and its high residual load capacity means that it can carry loads weighing as much as 1,000 kg to a height of 9.5 m. The integrated weight and height display and the comfortable tilt seat greatly facilitate load handling, while the mast and overhead guard are designed to optimise the driver’s view of the transported load. Other benefits that make work easier are the lift height pre-selection system and the lift height assistance system. The optional systems noticeably facilitate the quick and precise depositing and retrieval of goods. The seat, arm rests, steering wheel and foot plate can be adjusted to enhance ease of use. A wide range of settings allow the cabin to be adjusted to suit any driver, ensuring optimised ergonomics.
