piezoresistive level transmitter / for liquids / for water / stainless steel
ATM/N STS Sensor Technik Sirnach AG

{{requestButtons}}

Characteristics

  • Technology:

    piezoresistive

  • Medium:

    for liquids, for water

  • Other characteristics:

    stainless steel, submersible, 4-20 mA, rugged, corrosion-resistant

  • Applications:

    for storage tanks, for sumps, for atmospheric vessels, for harsh environments, for silos, for OEM, for hygienic applications, for the pharmaceutical industry, for pressurized vessels, low-pressure

  • Process pressure:

    Max.: 24.15 bar (350.27 psi)

    Min.: 0.01 bar (0.15 psi)

  • Process temperature:

    Max.: 80 °C (176 °F)

    Min.: -5 °C (23 °F)

Description

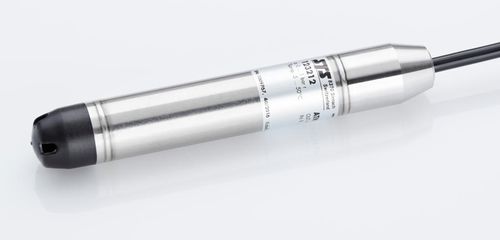

ATM/N - Analog Level Transmitter
Features
Pressure measuring range: 1 … 250 mH2O
Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS
Operating temperature: -5 … 80°C
Process temperature: -5 … 80°C
Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA
Materials: Stainless steel, Titanium
Cable: PUR, PE, PTFE, connactable
Customer benefits
Fast customization thanks to configurable product design
Titanium version with PTFE cable available for use in aggressive media
Available with overvoltage protection
Compact design requires minimal space
Available with overvoltage protection
