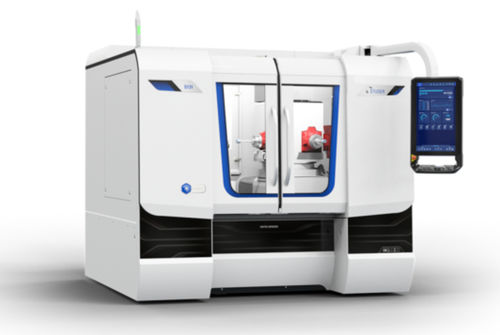

Internal cylindrical grinding machine S131

workpieceCNChigh-precision

The S131 is a CNC universal internal cylindrical grinding machine of the latest generation. The swing diameter above the workpiece table is 250 mm (9.8"), and the maximum workpiece length (including clamping device) is 300 mm (11.8"). The compact machine shows its strength with flange parts and smaller workpieces of all types. It has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the grinding spindle turret, automatic swiveling of the workpiece table etc. Hardware: StuderGuide® guide system with linear drive Grinding spindle turret with up to four grinding spindles Automatically swiveling workpiece table C-axis for workhead spindle for form and thread grinding Full enclosure with two sliding doors Granitan® S103 mineral casting machine base Software: Very simple operation and programming thanks to StuderWIN Short setup and resetting times e.g. with STUDER Quick-Set Standardized interfaces for loader and peripheral devices
