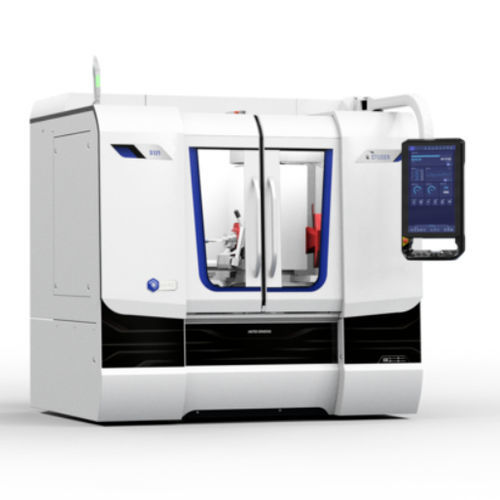

Internal cylindrical grinding machine S121
CNChigh-precisionwith linear motor

internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
Add to favorites
Compare this product


Characteristics

Type
internal cylindrical
Control type
CNC
Other characteristics
high-precision, with linear motor, universal, 2-axis
Spindle speed

120,000 rpm
(753,982 rad.min-1)

Power

18 kW
(24.47 hp)

X travel

350 mm
(14 in)

Description

The S121 is a universal internal cylindrical grinding machine for medium-sized workpieces in individual and small batch production. The reasonably priced universal machine has a swing diameter of 400mm (15.7"). It is the ideal machine for internal, face and external grinding of chuck components. The S121 has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, a swivel-in dressing unit, etc. Hardware: StuderGuide® guide system with linear drive Spindle turret with two grinding spindles or one fixed spindle C-axis for the workhead for form and thread grinding Full enclosure with two sliding doors Granitan® S103 mineral casting machine base Software: Very simple operation and programming thanks to StuderWIN Short setup and resetting times e.g. with STUDER Quick-Set Standardized interfaces for loader and peripheral devices
