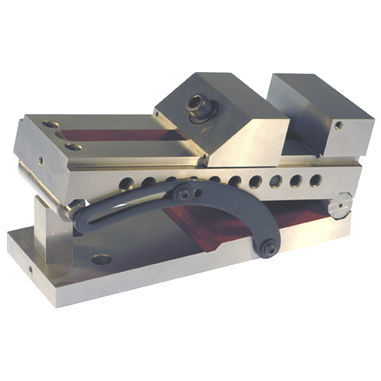

Machine vise SV series

sineprecisionfor grinding

Provides a quick and accurate means of holding a workpiece at an angle for grinding or inspection. Angled center channel provides extra holding capacity. Solid, one-piece body. Made from steel, hardened to Rc 58-60. Movable jaw pulls into base at 45 to 60° to insure maximum holding power and hold down force, eliminating tilting and lifting. Dual 0.200" minute steps built into the gage roll allow setting small angles with standard gage blocks. SV-337 models have small horizontal and vertical vees in the movable jaw and a ratchet mechanism with notched pockets and a one-piece drawbar. One locking strap included with each sine vise. SineSet® models bolt directly to a SineSet® sine plate or compound sine plate of the same series. S1 models also bolt to the AP-664-S1 90° conversion plate. Long Form Certification A form showing the advertised sizes and/or tolerances. The actual measurements taken of those sizes and/or tolerances. A statement that the standards used to measure the tool are traceable to the National Institute of Standards and Technology. Short Form Certification A form certifying that the specified product met manufacturer's specifications before leaving our factory.
