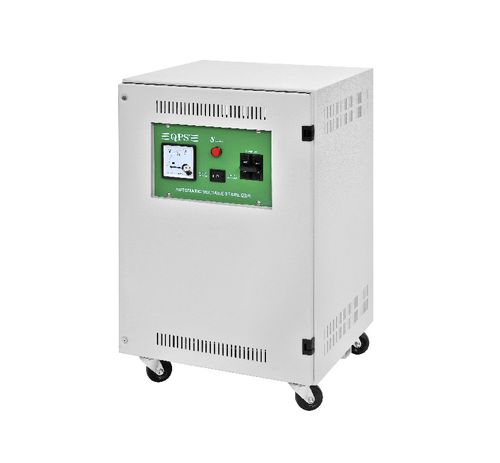

single-phase voltage stabilizer / automatic
1 - 30 kVA | S series Success Electronics & Transformer Manufacturer Sdn

{{requestButtons}}

Characteristics

  • Electrical characteristics:

    single-phase

  • Other characteristics:

    automatic

Description

QPS Servo-Motor Automatic Voltage Stabilizer provides a continuous monitoring of the output voltage true RMS by means of an Electronic Control Circuit that compares the instantaneous output voltage with the set value. When changes are detected due to fluctuation of supply voltage or sudden change in load, an electrical signal will be transmitted to the servo-motor which is coupled onto the brush gear of the variable transformer causes the brush gear to rotate until the appropriate voltage is restored. This method of stabilization does not create interference or harmonics in the supply system.

APPLICATIONS:

CNC wire-out / EDM
CNC drilling machine
CNC milling machine
X-Ray equipment
Industrial robots
Communication system
Test Equipment
Medical Equipment
Lab Equipment
