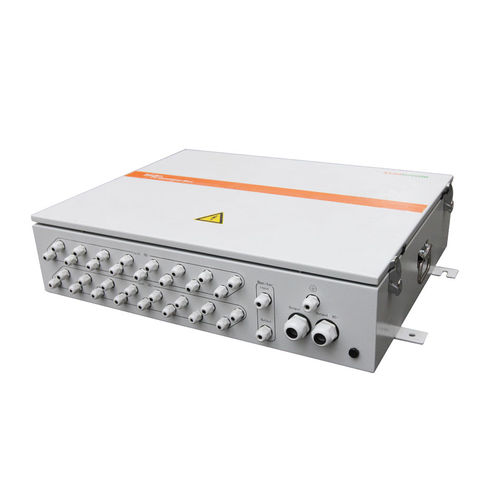

Compact box PVS-8M-HV, PVS-16M-HV
modularfor photovoltaic applicationsIP65

compact box
compact box
Add to favorites
Compare this product


Characteristics

Construction
compact
Configuration
modular
Application
for photovoltaic applications
Protection level
IP65
Other characteristics
solar combiner
Width

750 mm
(29.5 in)

Height

580 mm
(22.8 in)

Depth

180 mm
(7.1 in)

Description

Efficient and Safe •1500V-Specific PV fuse, both positive and negative terminal•1500V-Specific PV SPD with fault alarm•Specialized 2 in 1 fuse with favorable heat dissipation performance and compact size•String current and voltage monitoring•Main load switch state monitoring (optional) Flexible •IP65 protection, meet the outdoor installation and usage requirements•Self-powered power supply with lightning protection•Output cable sectional area 120 — 400 mm² (max. 400 mm² Al cable)•MC4 connector Reliable •Highly optimize the system wiring•Modular design for easy and quick maintenance•CE

Catalogs

No catalogs are available for this product.
