Dynamic agitator / chemical process vessel / polymer / for the petroleum industry
SUNKAIER INDUSTRIAL TECHNOLOGY CO.,LTD.
chemical process vessel, polymer, for the petroleum industry

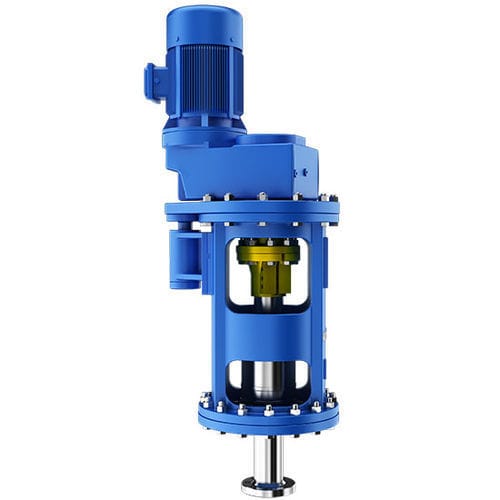

SK500 series mixers are agitators with high performance for extended lifetime, reduced maintenance and operating costs.This kind of mixer is specially designed for the application of sealed vessel mixing.
• C-Face Flange Connection
Connections are self-aligning,flexible coupling.
Sunkaier agitator configures the dry well oil leak-proof gearbox with hard surface gear,less miantenance,longer service life,and keep clean for working environment.
• Lift and Swivel System
Quick seal replacement reduces costly downtime.Easy enough for one person to change seal,even on the largest units.No disconnection of motor,or removal of gearbox.
• Half-open Type Coupling
Coupling adopts special half openings,easy removal and installation.This coupling particularly applys to the damp and rust production environment.
• Reinforced Bearing
The reinforced bearing could absorb running dynamic loads to protect the mechanical seal.Sleeve structure design is convenient to the removal and easy installation for the mixer shaft.Driving mechanism with reinforced bearing could exempt the bottom support structure.
• Mechanical Seal
