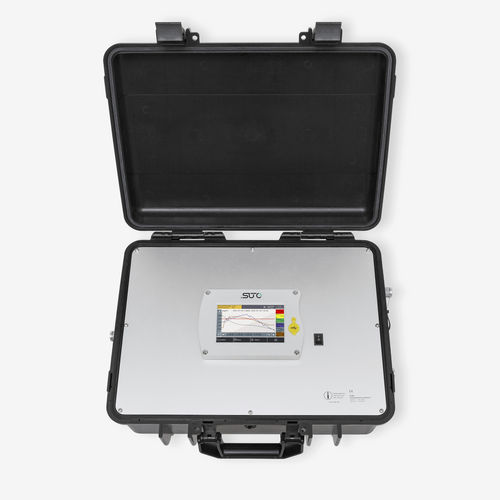

Particle analyzer S600

compressed airmonitoringconcentration

ISO 8573 compliant purity quantification of compressed air systems are bound to time-consuming installations and long-lasting test runs … We think it's time for a revolution: The S600 is unlike its competition. It combines latest sensor-technology, software-guided measurements and a time-saving setup into a mobile phone, touchscreen-controlled multi-tool. The S600 will finish measurement runs in much less time than traditional methods. After that, you don't ever want to leave your new comfort zone again. Trust us. FEATURES ✓ - 4-in-1 measuring device ✓ - High résolution 5" colour touch screen interface */ Software-guided measurements ✓ - Particle concentration measurements according to ISO 8573 standards ✓ - Dew point measurements with multiple sensor technology according to ISO 8573 standards ✓ - Oil vapor measurements with high précision */ Pressure measurement */ Integrated data logger ✓ - Portable design with 17.7 x 15 x 7.5 inches in size ✓ - Dew point measurement from -100... +20°C Td ✓ - Particle measurement from 0.1 < d < 0.5 pm, 0.5 < d < 1.0 pm, 1.0 < d < 5.0 pm ✓ - Oil vapor measurement from 0.003... 10.000 mg/m3
