Compressed air analyzer S601
monitoringpurityin situ

compressed air analyzer
compressed air analyzer
Add to favorites
Compare this product


Characteristics

Measured entity
compressed air
Application domain
monitoring
Measured value
purity
Configuration
in situ
Other characteristics
high-performance

Description

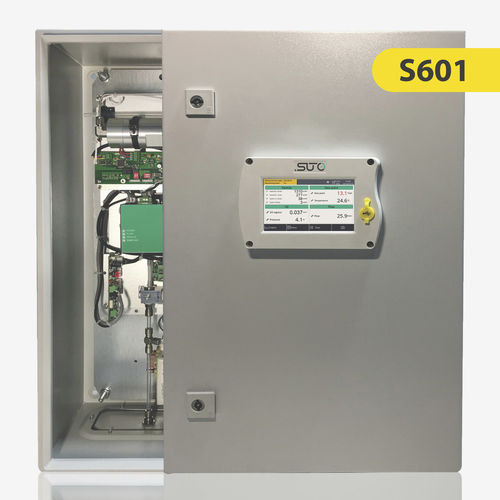

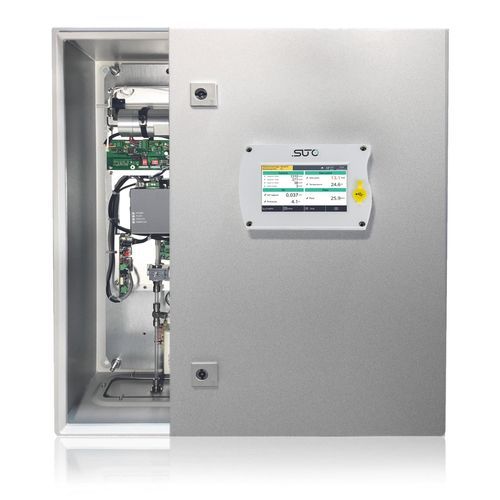

Product contamination can ruin a business and harm its customers. The typical approach of spot checks and random testing of compressed air systems does not allow businesses to quickly react to contamination events, nor does it provide continual assurance that contamination levels are being kept under control. In the ever quickening change of production, real time monitoring is crucial to protect your products' integrity. The SUTO S601 Compressed Air Purity Analyzer, measures and monitors contaminants in real time, giving businesses security that its products and customers are protected. The SUTO S601 Compressed Air Purity Analyzer brings together state-of-the-art technology in one easy to use package, allowing businesses to continuously monitor compliance to ISO8573. The S601 monitors particle, dew point and oil vapor contamination across the full spectrum of ISO8573 requirements, including Class 0. Real time information can be retrieved from the S601 by SCADA systems via MODBUS outputs. The integrated color touch screen display allows users to view all information locally. The data logging function ensures records are kept intact. Alarm points can be set to trigger in the event that contaminants hit your selected limits. An optional external light or siren can be added to the alarm. The S601 is quick and easy to install, just connect the unit to power and the compressed air supply. FEATURES ✓ - Compressée! air analyzer for 24/7 monitoring */ User friendly 6 mm quick connector ✓ - 5-in-1 measu rement device ✓ - Dew point measurement with unique dual sensor System */ Oil vapor measured on highest précision
