rolling stock computer / embedded / Intel® Atom x7-E3950 / Intel® Atom x5-E3930
Compact 81 Syslogic GmbH

{{requestButtons}}

Characteristics

  • Type:

    embedded

  • Processor:

    Intel® Atom x7-E3950, Intel® Atom x5-E3930, quad-core

  • Ports:

    SATA, CAN bus, Ethernet, RS-232, USB 3.0

  • Other characteristics:

    compact

  • Field:

    industrial, for rolling stock

Description

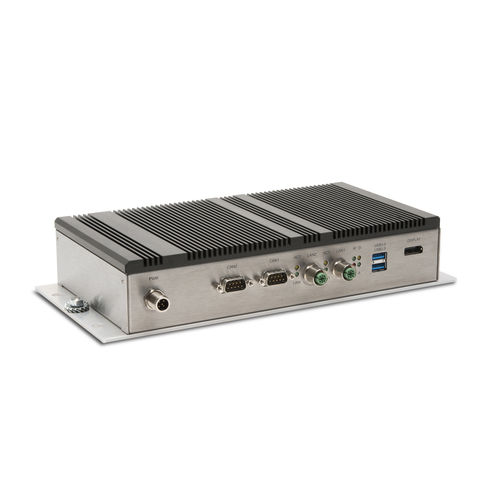

The maintenance-free Rolling Stock Computer Compact 81 comes with x7-E3950 or x5-E3930 processors from Intel Atom (Apollo Lake-I). This allows the maintenance-free rolling stock PCs to bridge the gap between high performance and lower performance processing.

The Railway Computer Compact 81 is meeting the standard EN50155, class TX. Furthermore, the railway computer offers a power failure bridge of up to 10 milliseconds according to EN50155, class S2 as well as complete EN61373 compliance with regard to shocks and vibrations, EMC (electromagnetic compatibility) and electrical insulation requirements. In addition, the industrial pc meets the fire protection standard for railway vehicles according to EN45545.
