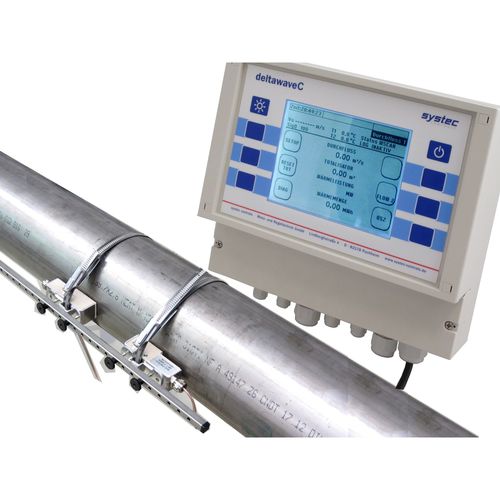

Ultrasonic flow meter DeltawaveC-Fix
for gasfor liquidsDN10 - 3/8"

ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Fluid
for liquids, for gas
Pipe diameter
DN25 - 1", DN10 - 3/8"
Installation
clamp-on
Material
PVC
Communication
RS485, Modbus, RS-232
Protection level
ATEX, IP68
Applications
industrial
Other characteristics
digital, with display, combined
Process temperature

Min.: -70 °C
(-94 °F)

Max.: 380 °C
(716 °F)

Precision

1 %

Description

Installation and setup within seconds Precise and simple does not mean any contradiction for deltawaveC-F. deltawaveC-F is extremely easy to handle. The user interface of the large graphical display is easy to use even by inexperienced users. With the new quick setup option, your flow measurement can be set up in less than a minute. Online help-texts make the use of the printed manual unnecessary for the majority of your daily tasks. The robust quickfix-mounting kit makes mounting of the sensor precise, fast and stable. deltawaveC saves time and cost deltawaves clamp-on technology works: 100% contact free with the liquid 100% wear and tear free 100% leackage save 100% hygenic 100% free of pressure loss daltawaveC was tested and certified for hazardous area applications. Both, transducers and electronics fulfill Eexd requirements (flame proove). More good news: Even if you are using the Ex-electronics you must not give up the big display and the simplicity of the handling. The Ex unit uses the same HMI then the non Ex-Version. The Eexd-certification offers you the option of combining Ex- and Non-Ex electronics and transducers. In many applications, the Ex area is only several meters around the pipe. In such cases Ex-transducers can be combined with Non Ex-electronis. This will save money and your installtion fullfills still the safety requirements. deltawaveC jetzt auch im Ex Bereich Accurate, Drift-Free, Robust deltawaveC-F measures by using the extreme accurate ultrasonic transit time method. In this method, the measure rate is very high, typical 50-150 times per second. The high number of measurements can be performed
