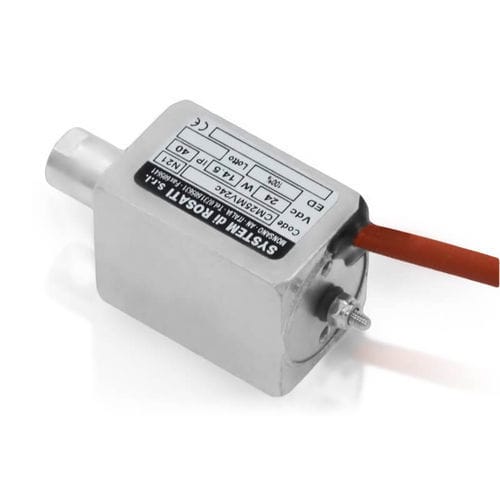

Holding solenoid CM series
linearlockingcustom

holding solenoid
holding solenoid
holding solenoid
holding solenoid
Add to favorites
Compare this product


Characteristics

Type
linear, holding, locking
Other characteristics
industrial, power, electromagnetic, push, single-acting, custom, compact, IP20, single-coil, 24-volt, AC, 48-volt, push-pull, pull, DC
Voltage

12 V, 24 V

Stroke

Min.: 0 mm
(0 in)

Max.: 12 mm
(0.47 in)

Description

Linear electromagnet type CM with single coil, designed for small movements, offers a constant force over the entire stroke in both traction and thrust. It can be used for continuous ED duty=100% or customised for intermittent duty cycles. Numerous customisations are available, sizing of the electromagnet, electric coil (power and voltage), accessories (fastening, type of shaft, springs, etc.). TECHNICAL DATA SHEET https://www.systemrosati.com/wp-content/uploads/2023/06/elettromagnete-cm-en.pdf Power supply = 12 – 24Vdc – other Traction/thrust ED% duty = 100 Single coil Constant force throughout the stroke Max. stroke = 12 mm Dimensions = 25 – 30 – 40 CUSTOMISED VERSIONS AVAILABLE https://www.systemrosati.com/en/customised-products/ CONTACTS https://linktr.ee/systemdirosati
