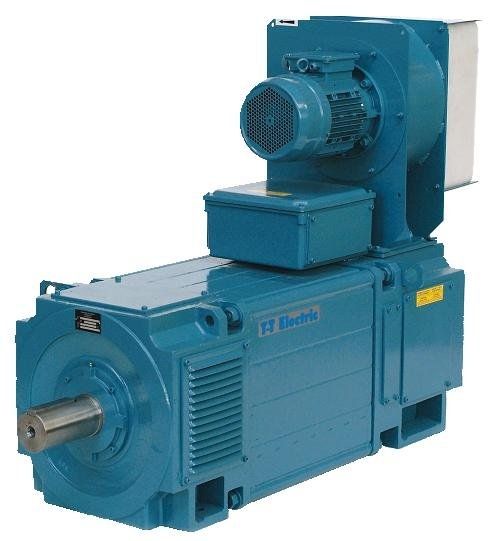

DC electric motor
1 - 500 kW, type LAK 4000
T-T ELECTRIC
LAK 4000 d.c. motors are fully laminated, 4 pole, square frame.
- Output: 1-500 kW
- Torque: 5-4200 Nm
Type designation example - LAK4160B:
- LAK = Type of Motor
- 4 = Number of poles
- 160 = Center height
- B = Core Length
- Fully laminated stator, main poles and interpoles
- Compact square frame design
- Easy instalation of accessories
- Large openings in end shields for easy inspection
- Stator windings of varnish insulated copper wire
- Laminated armature core of high grade insulated electroplate
- Large number of cooling products in armature provide excellent cooling
- Scrambled armature laminations for low torque ripples
* Armature windings of varnished copper designed for low commutating stresses and high mechanical strength
* Armature is impregnated to ensure high degree of heat transfer
* Brush holders with spring loaded pressure fingers
* Prepared for a number of options and accessories ensuring high flexibility
* Painting with excellent corrosion resistant properties
* Conforms with IEC standards
* Available as NEMA standard
* CSA approved
