Abrasion and wear testing machine 6160

for materialsmechanicaloscillating

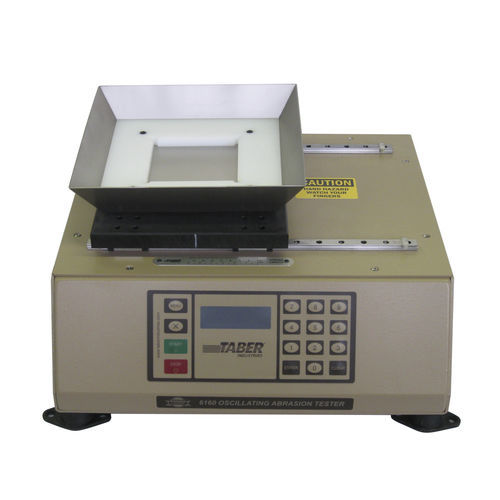

The TABER® Oscillating Abrasion Tester - Model 6160 is best known as an "oscillating sand tester". Described in ASTM F735 (Standard Test Method for Abrasion Resistance of Transparent Plastics and Coatings Using the Oscillating Sand Method), the oscillating sand tester is used to measure the relative abrasion resistance of a material to surface abrasion and / or marring. The primary application of the Oscillating Sand Abrasion Tester is for transparent materials and coatings utilized in windows and lenses, but it might also be used to evaluate organic paints & coatings, plastics, metals and other materials. Description Rigid specimens that are 100mm square and less than 12.5mm in thickness are mounted in a holder located in the bottom of a sand tray so the surface is flush within 1mm. The tray is filled to a uniform depth (e.g 12.5mm) with a standardized abrasive media such as quartz silica or alumina. A scotch-yoke drive system reciprocates the tray in a back-and-forth (to-and-fro) motion which causes the entire mass of the abrasive media to shift significantly within the tray. The oscillating movement of the abrasive media results in a random pattern of scratches which simulates normal everyday wear. Test parameters can be altered with Taber's Oscillating Sand Abrasion Tester, and allow the operator to select the operating stroke length (6.5 to 150 mm) and speed (variable from 100 - 200 cycles per minute). ASTM F735 specifies the sand tray travels a distance of 100mm at a speed of 300 strokes per minute (150 cycles per minute). Using a custom specimen holder (not supplied), materials of various shapes may also be tested.
