Abrasion and wear testing machine 5820

manualmaterialsfor materials

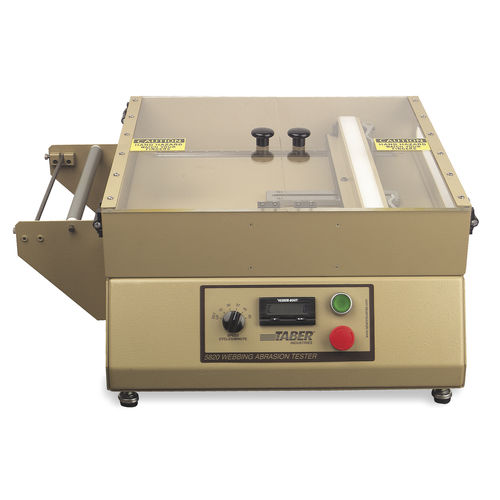

The TABER® Webbing Abrasion Tester - Model 5820 is used to evaluate abrasion resistance properties of seat belts and other webbing products (e.g. safety straps, tie-downs, harnesses, helmet straps, etc). Common types of materials that can be tested with this instrument include nylon, polyester, leather, polymers, and other flexible sheet materials. Description A specimen clamp bar secures the specimen to the instrument while a specimen roller ensures an angle of 85° (±2°) is maintained between the specimen and hexagonal (hex) abrasion bar. Test specimen is weighted, and then subjected to a unidirectional reciprocal rubbing action as it travels back and forth over the hex abrasion bar. The test specimen passes over two of the six abrading edges of the 12" hex abrasion bar during each test. Depending on specimen width, up to three specimens can be evaluated simultaneously. Other features of the Taber Webbing Abrasion Tester include a slotted roller channel allowing a maximum stroke length adjustment of 305mm (12 inch); five preset speeds including 15, 30, 37, 45, and 60 cycles per minute; hinged, transparent safety cover; and a standard weight set of 2, 4 & 5.2 lbs. (an optional weight set of 3 & 5 lbs. is also available). The Webbing Abrasion Tester has the capacity to test materials with a breaking strength over 13,500 N per ASTM D6770, MIL-W-23223B, US Department of Transportation FMCSA Part 571.209 and other internationally recognized test standards. Two (2) fresh edges of the abrasion bar should be used for each test. If only one specimen is being tested at a time, the next specimen can be abraded on a different part of the hex abrasion bar.
