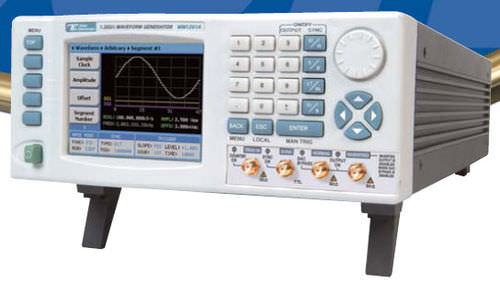

Arbitrary waveform generator WW1281A

USBsingle-channel

The WW1281A, Single Channel Frequency Agile Waveform Synthesizer, combines industry-leading 1.2GS/s sample clock performance, frequency agility and modulation capability in a stand-alone package. Capable of generating waveforms from 1Hz to 400MHz the WW1281A supports test stimulus demands of the information age, applications requiring clear tone separation and less than 600ps transition time. Single-channel 1.2GS/s waveform generator Sine wave to 400MHz and Square to 250MHz 12 Bit amplitude resolution 8M waveform memory, 16M memory, optional 2Vp-p into 50Ω (4Vp-p option), double into open circuit Square wave transition times of less than 700ps Two serial bits to generate complex digital strings FM, Arbitrary FM, FSK, PSK, and Sweep Multiple run modes including gated, triggered and bursts Powerful sequencer allowing efficient, long waveforms with multiple sequences, fast coherent segment switching and coded segment hop connector Trigger delay inhibits the start of the output waveform User friendly 3.8 color LCD display Two-Instrument synchronization LAN, USB and GPIB interfaces Free ArbConnection software, IVI and MATLAB drivers
