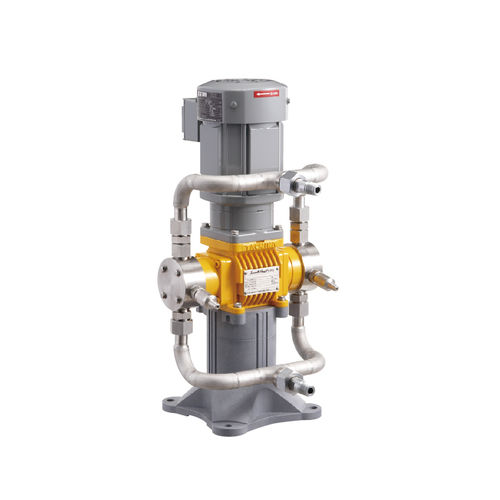

Water pump BPL series

for chemicalselectricindustrial

Features Enlarge an image "High-Precision, Constant-Speed Cam" That Delivers Continuous Flow With No Pulsation. We employed a simple driving mechanism with a one-cam structure such that the sum of the discharge amount of the left and right pump heads is always constant and hence generates a continuous flow. We succeeded in realizing metered and High-Precision fluid transfer without fluctuation in the injection amount. No Damage to the Fluids As the pump has no parts with mechanical interference, there is no risk of fluid deterioration caused by shearing, abrasion, pressure, or temperature change. No Risk of Fluid Leakage or Chemical Splashing As the pump does not have a mechanical seal, there is no chance of external leakage, and, even in the case of dry-running, there is no risk of pump seizure. Simple Piping Design There is no need for an air chamber, therefore piping vibration due to the air pressure loss or splashing of chemicals in the case of an air chamber rupture can be avoided. Additionally, maintenance costs associated with air chambers can be reduced. The Piping Can Be Smaller in Diameter and Longer in Distance Because the pump has no pulsation, it is possible to plumb the system with smaller diameter and lower cost pipe. In the case of more expensive pipe, such as stainless steel and lined tubing, this makes a significant reduction of the system cost. Strong and Easy to Maintain Less consumable parts - easy disassembly and replacement
