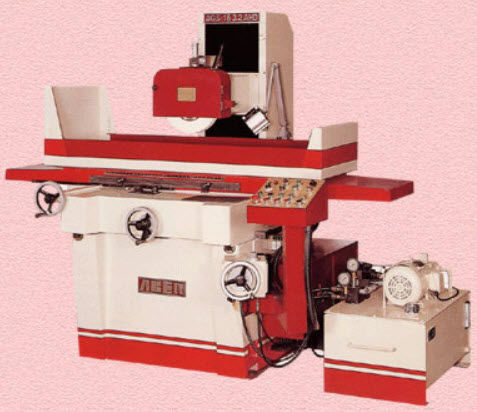

surface grinding machine / for metal sheets / PLC-controlled / high-precision
Taiwan Trade Center, Chicago
for metal sheets
7.5 ch (7.5 hp)
1,750 rpm (10,996 rad.min-1)
Distance between centers:
Fully ribbed column ensures the highest rigidity.
Overhead parallel dresser.
Spindle run-out within 0.0001".
Cartridge type spindle with four class 7 high precision angular contact ball bearings.
Complete splash guard.
Longitudinal push-in handwheel.
Bearing type directional control arm.
Double-V Turcite-B laminated saddle ways.
Ball screw on crossfeed.
Weigh in at impressive 6,160 lbs.
Crossfeed driven by AC motor and timing belt.
Auto downfeed system increment from 0.0001" to 0.001".
Levelling bolts and pads.
Upper limit indicator.
Rapid elevation is standard.
Insert type coolant nozzle.
Halogen work light.
Electromagnetic chuck with demagnetizer.
Safety 24 volt control circuit.
Turcite-B lined one V & one flat table way.
Dual hydraulic pump system: one each for auto incremental downfeed & table longitudinal travel.
Enlarged hydraulic tank to cut down thermal effect on hydraulic oil viscosity.
Separate electrical power cabinet; easy maintenance design.
