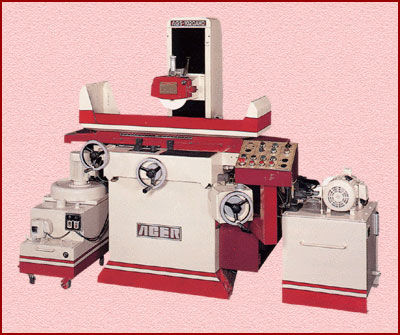

Surface grinding machine AGS-1020AHD
hydraulic3-axis

surface grinding machine
surface grinding machine
Add to favorites
Compare this product


Characteristics

Type
surface
Other characteristics
hydraulic, 3-axis
Spindle speed

3,500 rpm
(21,991 rad.min-1)

Power

2 ch
(2 hp)

Distance between centers

19 in

Description

Note: Downfeed is now counter-clockwise. Reinforced high column & heavyweight Meehanite casting. Direct drive spindle equipped with 4 ABEC-7 angular contact ball bearing. Spindle motor: 2 HP (1020AHD), 5 HP (1224AHD). 1020AHD with 10" x 20" grinding capacity: 1224AHD with 12" x 24" grinding capacity. 3 axes auto movement, easy to operate & maintain. Auto surface & plunge downfeed. Built-in chuck control for electromagnetic chuck (1224AHD only). 24 volt circuit control. Double-V crossfeed ways; one V, one flat table ways. Auto-lube system. Dual hydraulic pump system: one each for auto incremental downfeed and table longitudinal travel. Large volume hydraulic tank. Rapid power elevation for 1224AHD. Double nut design for crossfeed leadscrew. 19 3/4" \ 23 1/2" from table top to the center of spindle. 4,180 lbs of full Meehanite casting (1224AHD only). Extra wide saddle at 24 1/2" and 30 1/2" each. Package with parallel dresser, dust suction & coolant system, halogen light and magnetic
