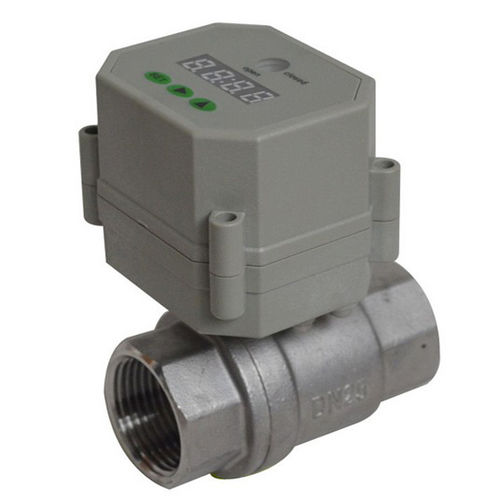

Ball valve S25-S2-Celectrically-actuatedpurgefor air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- purge
- Media
- for air
- DN
0.375 in, 0.5 in, 1 in
- Pressure
1,500,000 Pa
(217.6 psi)- Temperature
Max.: 50 °C
(122 °F)Min.: -15 °C
(5 °F)
Description
The user can set open and close time on request.
Product size: NPT/BSP 1''
Maximum working pressure: 1.3 MPa
Circulation medium: Fluid, air
Valve open /closed time ≤ 7 seconds
Rated voltage: AC/DC9-24V AC110-230V (Optional )
Keeping valve open time: 0 H: 0M: 0S --99 H 59
Keeping valve closed time: 0 H: 0M: 0S --99 H 59
Working current: ≤ 500mA
Stall current setting: 0-599mA
Life time:100000 times
Valve Body material: 304 Stainless steel
Actuator material: Engineering Plastics
Sealing material: EPDM & PTFE
Actuator rotation: 90°
Max. Torque force: 4N. M
Cable Length: 0.5m
Environment temperature: -15~50
Liquid temperature: 2~90
Manual override: No
Indicator: Yes
Protection class: IP67
