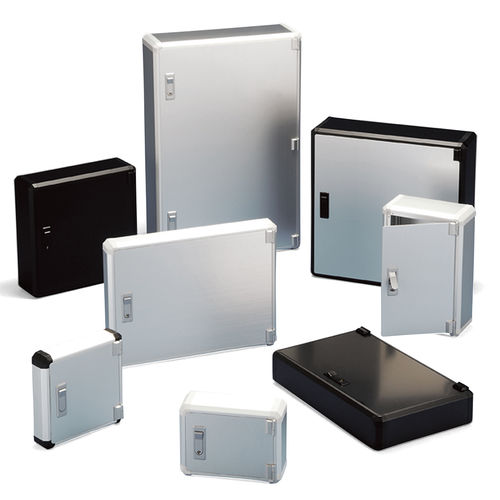

Enclosure with hinged cover FCW series

wall-mountrectangularextruded aluminum

Available in 108 sizes, open-closing type aluminium enclosure. Easy for maintenance with open/close type cover. Can choose 'with key' or 'without key'. 108 sizes, 4 colors. ■ 108 different sizes in 4 different color variations available. ■ Easy access to the inside of the case with open/closing cover. ■ Both with and without key lock types are available. ■ Suitable for touch panel display, industrial control equipment and many others. Custom width / length available ■ Flexible frame width / length in 1mm intervals. ■ No minimum order quantity and short lead time for small quantity order Included screws M4-15 pan head, trivalent chromate / black trivalent chromate x 16 pcs M3-5 pan head, trivalent chromate / black trivalent chromate x 2 pcs or 3 pcs M3-5 countersunk trivalent chromate / black trivalent chromate x 2 pcs or 3 pcs M4-8 trivalent chromate with washer x 2 pcs or 4 pcs M4-6 trivalent chromate with washer x 2 pcs or 4 pcs FCW panel protection pad ■ Used to protect the panel from impact when closing, and to prevent wobbling or rattling when closed. ■ Refer to illustration on recommended placement position.
