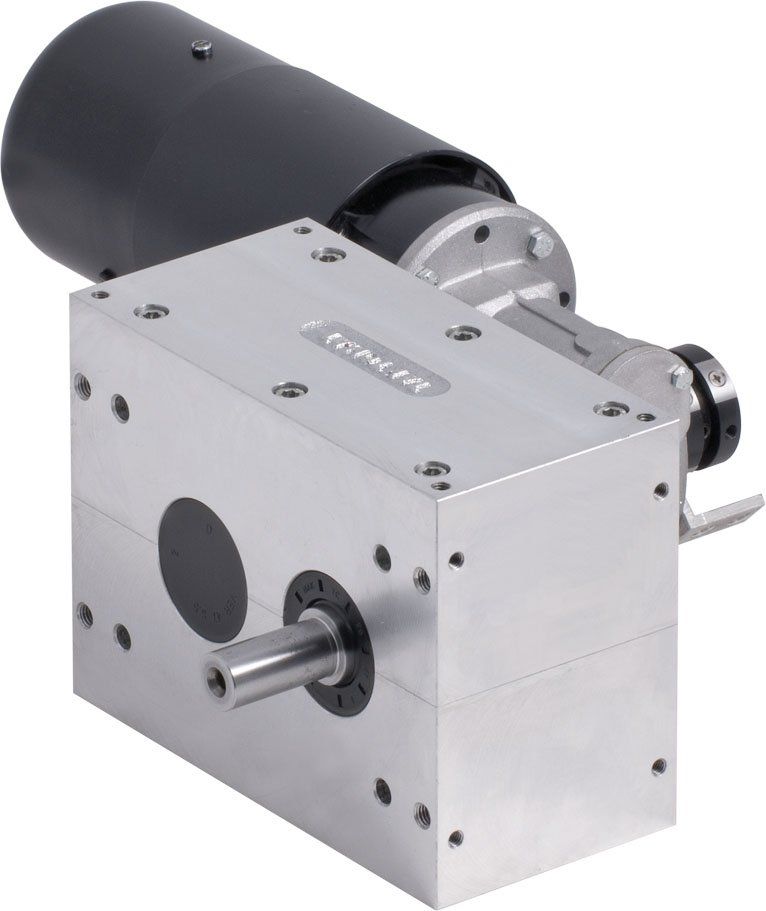

Parallel shaft indexing drive
A= 30 - 250 mm | XP / TP
Taktomat
Mode of Operation:
Taktomat Parallel indexers are precision drives which transform a uniform drive movement into stepped or swinging movements. The use of mathematically defined and standardized curve laws (VDI 2143 Sheet 1) guarantees a jolt and shock free movement. The structural design of Taktomat Parallel indexers produces a positive drive position free of play. An additional interlocking of the drive shaft or of the flanged construction is not required. It could lead to mechanical over-determination and therefore a long-term destruction of the indexing table.
The flux either occurs from a three-phase brake motor via a Worm gear, or from a chain or belt pulley onto the drive shaft of the parallel indexer. That is tightly connected with pulley set and turns the roll star with the drive shaft.
Suitably sized shaft seals seal the parallel indexer to the inside and outside.
Taktomat Parallel indexers are precision drives which transform a uniform drive movement into stepped or swinging movements. The use of mathematically defined and standardized curve laws (VDI 2143 Sheet 1) guarantees a jolt and shock free movement. The structural design of Taktomat Parallel indexers produces a positive drive position free of play. An additional interlocking of the drive shaft or of the flanged construction is not required. It could lead to mechanical over-determination and therefore a long-term destruction of the indexing table.
The flux either occurs from a three-phase brake motor via a Worm gear, or from a chain or belt pulley onto the drive shaft of the parallel indexer. That is tightly connected with pulley set and turns the roll star with the drive shaft.
Suitably sized shaft seals seal the parallel indexer to the inside and outside.
