Water pump CTV 25-11for chemicalswith electric motorsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals
- Operation
- with electric motor
- Priming
- semi-submersible
- Technology
- centrifugal
- Domain
- industrial
- Applications
- circulation, for transfer, chemical process
- Material
- PVDF, stainless steel, PP, plastic
- Other characteristics
- single-stage, suction, dry, vertical, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 15.6 m³/h
(550.9088 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 16 m
(52'05" )- Power
1.1 kW
(1.5 hp)
Description
CTV 25-11 PLASTIC

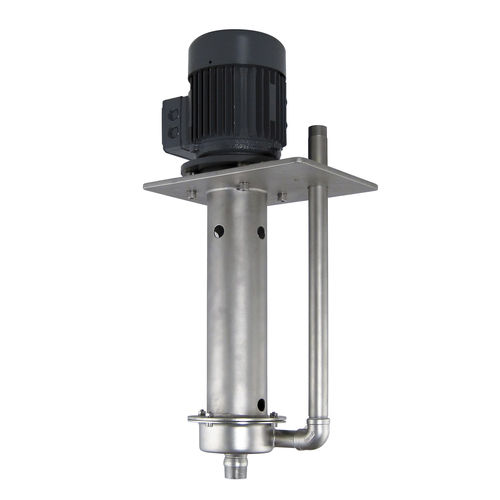

CTV 25-11 is a 1" vertical pump in PP or PVDF with 1.1 kW motor, capacity of 15.6 m3/h and max head of 16 m.
Performance curve
The performance curves are based on water at 20°C. Other circumstances might change the performance.
