threaded insert / brass / flat
M2.5 - M8 | FOAMSERT® TAPPEX

{{requestButtons}}

Characteristics

  • Type:

    threaded

  • Material:

    brass

  • Configuration:

    flat

Description

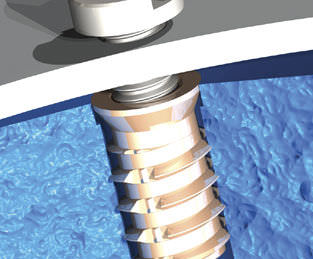

Foamsert
The Tappex Foamsert range of inserts for plastics has been developed for various environments and application criteria. It includes two primary designs – Double ended and Reduced headed.
Double Ended – Product Features

The most significant additional features of the Foamsert compared to the Trisert are the larger external diameter, length and coarse truncated external thread form.

Three equidistant cutting flutes, over the length of the external form, give a more balanced cutting load than other forms of self-tapping insert. The cutting action takes place at a larger number of points on the thread form over the length and circumference of the insert.

Lead on both ends allows the insert to be installed either way up, therefore, where the volumes dictate that bowl feeding equipment is required, it is not necessary to incorporate complex flighting systems to orientate the insert, which makes bowl feeding simpler and reduces tooling costs.

Free running internal thread due to there being no interruption to the internal thread, as the external longitudinal flutes produce the cutting action during installation.

Reduced outward stress – During the installation process the cutting action of self-tapping inserts results in slight outward stress. This is reduced to an absolute minimum with the Foamsert and enables the insert to be used where there are thin walls.

Improved axial alignment – The balanced cutting load of the Foamsert reduces side thrust caused by predominantly only one cutting edge. This has the effect of guaranteeing much closer axial alignment of the insert in the hole.
