CNC machine programming software
All Tebis software products for CAM and shop floor applications are designed to supply NC machines with NC programs in the right format. This is made possible by the universal Tebis postprocessing concept, which is integrated into CA M workstations as well as Viewer, Simulator and WOP stations. The Tebis DNC software can also be installed as an add-on module on these stations, providing a direct machine connection with queue management and online format conversion. Stand-alone DNC stations can also be integrated into shop floor workflows to supply data to one or more milling machines via serial interfaces.
Standardized user interface

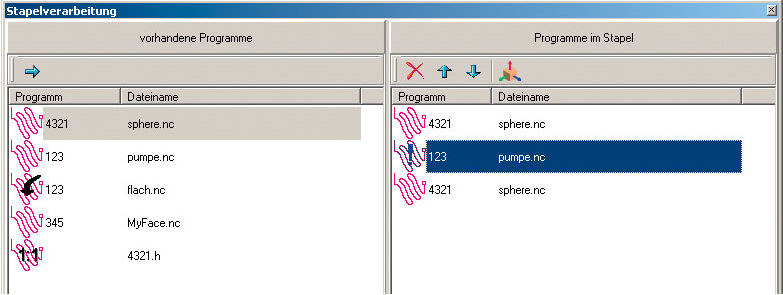

If necessary, you can supply NC programs to multiple milling machines from the same Tebis DNC workstation. NC controllers can be connected in series or via the network.
There are two ways to transmit NC programs:
* transfer the NC data 1:1 without changing the format
* convert the NC data during transmission to a different format that is compatible with the NC controllers.
WOP (workshop-oriented programming)
If you connect a Tebis CAM station to the DNC module, it becomes a WOP station. After calculation toolpaths can be transmitted directly to the linked machine.
