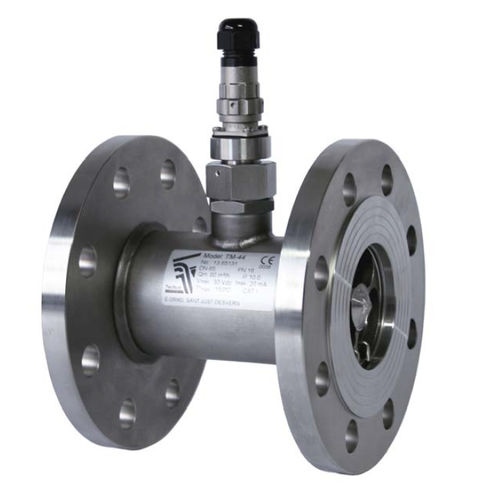

turbine flow meter / for liquids / metal tube / in-line
TM series TECFLUID

{{requestButtons}}

Characteristics

  • Technology:

    turbine

  • Fluid:

    for liquids

  • Other characteristics:

    metal tube, in-line, flange, stainless steel, digital

  • Applications:

    industrial, sanitary, for the petrochemical industry

  • Process pressure:

    16 bar, 40 bar (232.06 psi)

  • Process temperature:

    Min.: -50 °C (-58 °F)

    Max.: 170 °C (338 °F)

  • Volumetric flow rate:

    Min.: 300 l/h (79.3 us gal/h)

    Max.: 650,000 l/h (22,954.5 us gal/h)

Description

Suitable for flow measurement of liquids or volume totalizer, with several options for the electronic converters. Suitable for all flow directions with good performance with clean and low viscosity liquids.
Application areas

All kind of industrial processes in chemical and petrochemical industry, liquified gas systems, high pressure systems...
Technical specifications

Measuring range:
300 l/h … 650 m3/h H2O

Accuracy:
+-0,5%

Connexions:

DN15…DN50 PN40

DN65…DN150 PN16
Standard flange connection according to DIN2502 flanges. Others on request
BSP o NPT threaded connections
DIN11851 sanitary connection

Materials:
Body: EN 1.4404 (SS 316L)

Propeller: EN 1.4416 (SS 430)

mV output by means of pick-up coil proportional to the flow

Compatible with associated electronic converters CIP / CP / MT03 / DFD420. Others on request
