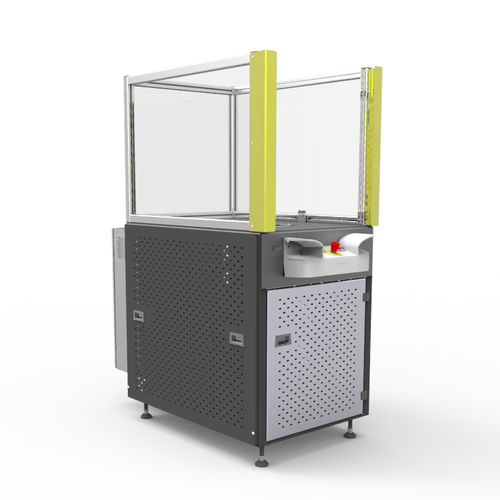

shock absorber crimping machine / automatic / pneumatic / hydraulic
Autocrimp 106 - POP 106 TECHMAFLEX

{{requestButtons}}

Characteristics

  • Product handled:

    for shock absorber

  • Operational mode:

    automatic

  • Drive type:

    pneumatic, hydraulic

  • Other characteristics:

    compact, for automotive applications

  • Crimping force:

    392,266 N

  • Diameter:

    Min.: 4 mm

    Max.: 40 mm

Description

Benefits :

- Pneumatic or hydraulic power
- Compact head to be easily integreated into a production line
- Robust components for heavy series
- Low maintenance
- High Cpk / Cmk performances

Technical features :

- Crimp range: 4 to 40 mm
- Theorical crimp force: 40 t
- Complete opening: 108 mm
- Max. crimping stroke: Die diameter +28 mm
- Master-die length: 104 mm
- Diameter with closed master-dies: 80 mm
- Power source: Hydraulic or pneumatic
- Cycle time: 2 to 10 s
- Working pressure max.: 160 bar
