Seam welding machine
0.5 - 10 rpm | RSX26
techMatrix, LLC

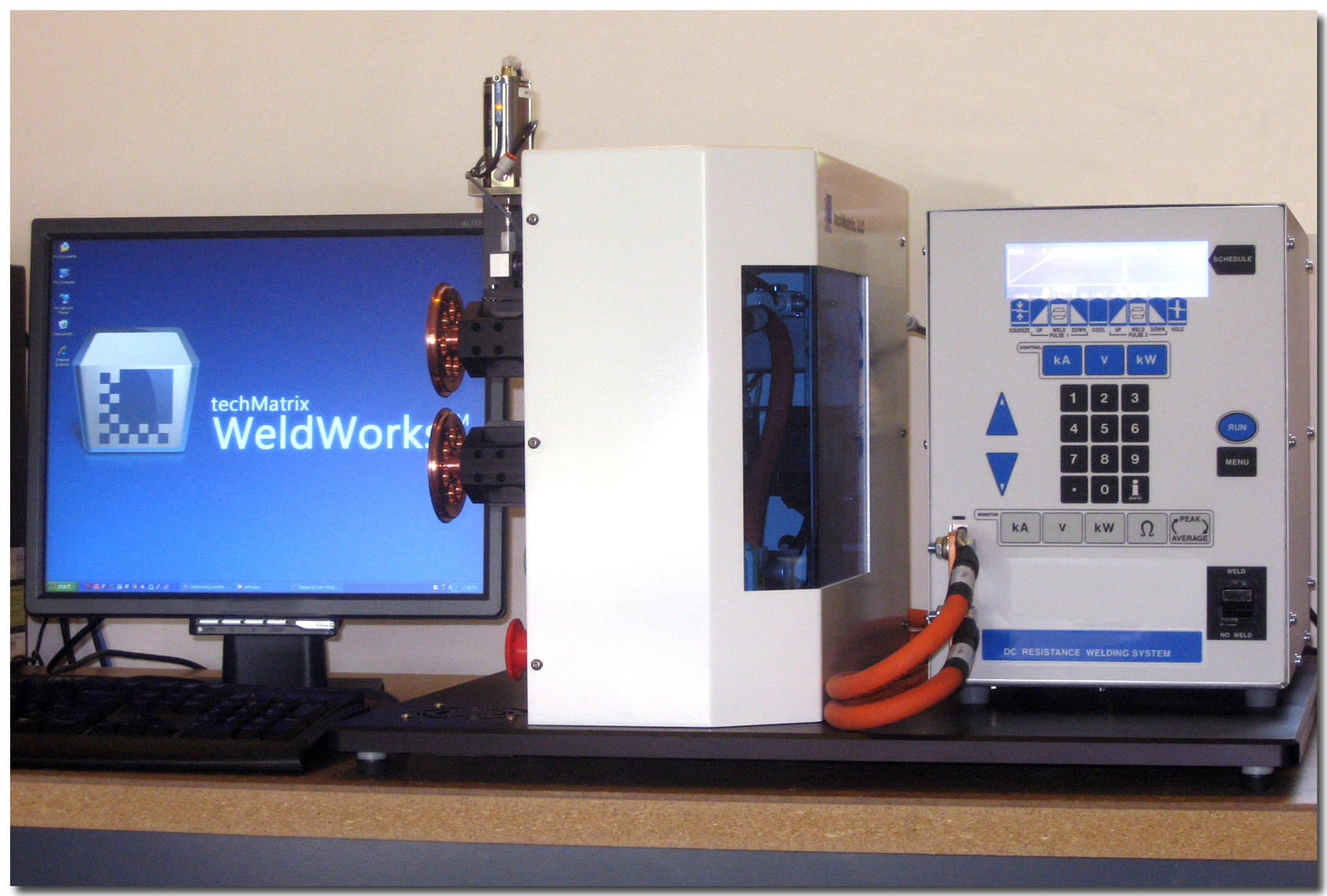

The RSX26 is a compact, air cooled, table-top resistance seam welder (RSEW), perfect for small scale longitudinal or circular seam welds. When mated with leading manufacturers high frequency or capacitive discharge weld controllers, the RSX26 can perform spot, roll spot, or continuous resistance seam welds.
The rollers are designed with custom profiles, materials, and diameters to meet specific customer requirements. The roller speed and force are fully configurable and are set with each part’s weld schedule using techMatrix WeldWorks™ Software Suite.
Footprint: 0.7m x 0.7m, table-top
Control: Microsoft Windows
Force: Up to 300N
Roller Speed: 0.5 to 10 RPM
Applications: Joining Cans, door strips, tanks, filters
The rollers are designed with custom profiles, materials, and diameters to meet specific customer requirements. The roller speed and force are fully configurable and are set with each part’s weld schedule using techMatrix WeldWorks™ Software Suite.
Footprint: 0.7m x 0.7m, table-top
Control: Microsoft Windows
Force: Up to 300N
Roller Speed: 0.5 to 10 RPM
Applications: Joining Cans, door strips, tanks, filters
