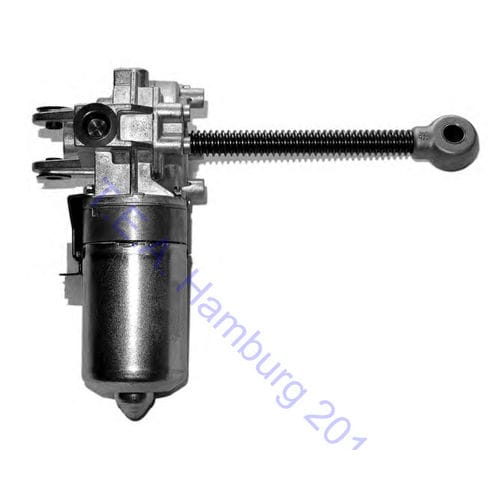

Linear actuator HG200K series
electrictrapezoidal screwcable

linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
trapezoidal screw, cable
Material
steel
Voltage
24-volt, 48 V
Protection class
IP54
Other characteristics
motorized, control, standard, miniature, flat
Force

Min.: 0 N

Max.: 6,000 N

Speed

Min.: 6.5 m/s
(21.33 ft/s)

Max.: 27.2 m/s
(89.24 ft/s)

Description

It has no limit switches. Thus the currency should be limited to 12A (Load shedding) or limit switches respective a control unit should be implemented from customers site. On request it is possible to integrate a simple encoder with 1 ppr and 2 sensors. For the standard actuator HG200K it is also possible to fix the screw inside the gear box and add a screw nut similar to a rotating screw jack. MORE INFO Protection class IP43 (IP54 as option) Cable connection 2pole flat connector CT1023 6,3x0,8 on short cable; suitable connector included in shipment Gear box type Worm gear box witv ratio i= 20,25:1 Trapezoidal screw TR16x3,6(Standard); TR16x2; TR16x4; TR16x8 Please order screw and screw end maching M12x15 separately! Length up to 1000mm from stock, up to 3000mm on request (consider buckling!) Duty Cycle Intermittent duty max. 10% S3 Housing material Die cast zinc Screw material Steel C15 or stainless steel Screw nut material Plastic Weight without screw 2,2kg
